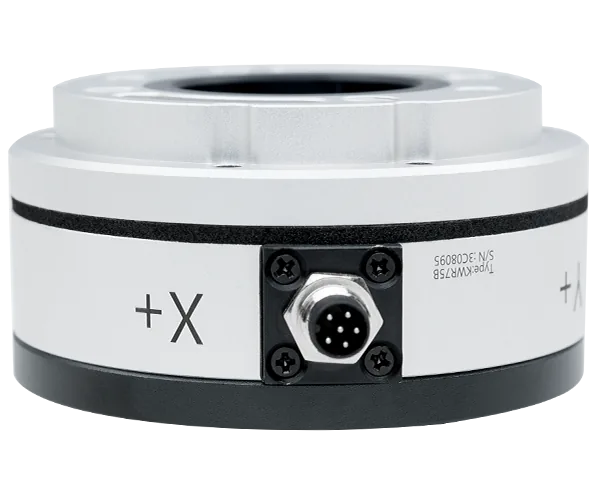

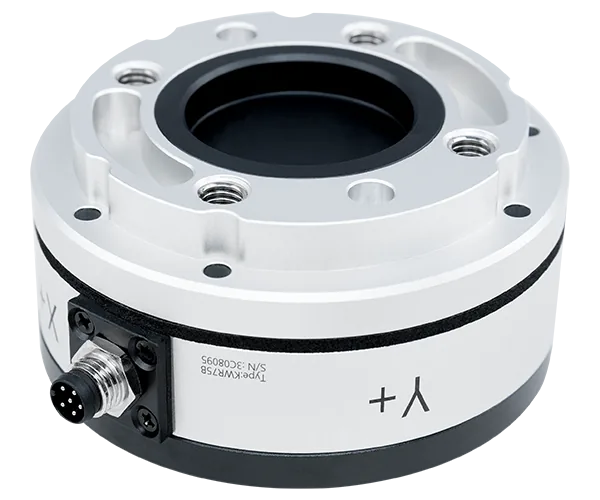

KUNWEI KWR75C Six-Axis Force/Torque Sensor
Mid-range six-axis force/torque sensor with 400 N radial and 500 N axial capacity plus 12 Nm moments. Combines 0.5 %FS accuracy, 200-300 %FS overload protection and multi-protocol output, suiting deburring, screwdriving and force-controlled machine tending on industrial arms.
Price on request
Axes6
Accuracy0.5 %FS
Resolution0.03 %FS
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Axes | 6 |
| Accuracy | 0.5 %FS |
| Resolution | 0.03 %FS |
| Overload Capacity | 200-300 %FS |
| Sampling Rate | 1000 Hz |
| Interface | RS422/RS485/Modbus/CAN/CAN FD/TCP/UDP/EtherCAT/USB |
| Diameter | 75 mm |
| Height | 31.5-33.5 mm |
| IP Rating | IP64 |
| Operating Temp | -10 to 80 C |
| Fx/Fy Range | 400 N |
| Fz Range | 500 N |
| Mx/My Range | 12 Nm |
| Mz Range | 12 Nm |
| Material | Aluminium alloy |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Supplier
Changzhou Kunwei Sensing Technology Co., Ltd. 常州坤维传感科技有限公司
Changzhou, Jiangsu
KUNWEI is a Changzhou-based specialist in multi-axis force measurement with more than twenty years of force-sensing experience. Its KWR series six-axis force/torque sensors serve collaborative robots, humanoid robots and precision assembly lines, offering 0.5 %FS accuracy, 1 kHz sampling and EtherCAT, CAN FD and Ethernet interfaces for over 500 partners worldwide.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Lead time15-30 days
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
