Compare through-bore slip rings and high-flex torsion cable assemblies for robot joints by circuit count, current rating, signal shielding, and speed.
As of July 2026, this catalog lists 8 models from 2 manufacturers. Filter by the requirements below, then request a quotation for the exact configuration.
Choose a manufacturer or product type, then narrow the specifications.
No models match those filters. Tell us what you need—we source beyond the catalog.
Request a quote| Model | Dimensions / configuration | Electrical circuits / ratings | Material | Quote |
|---|---|---|---|---|
| Senring M220 | OD 22 mm; length 19-54.5 mm | 2A x 2-36 circuits; 5A x 6-12; 10A x 2-4; 30A x 2-3; 0-240 VAC/VDC | Gold-to-gold precious metal contacts; engineered plastic housing | Quote |
| Senring M125 | OD 12.5 mm | 1.5A or 5A per circuit; 2-18 circuits; 0-240 VAC/VDC | Gold-to-gold precious metal contacts; engineered plastic housing | Quote |
| Senring M300 | OD 30 mm | 30A or 50A per circuit; 2-6 circuits; 0-240 VAC/VDC | Gold-to-gold precious metal contacts; engineered plastic housing | Quote |
| Senring H180298 | Bore 180 mm; OD 298 mm | 0-20A standard per circuit (customizable); 0-600 VAC/VDC | Aluminum alloy housing with precious metal brush contacts | Quote |
| Senring H2069 | Bore 20 mm; OD 69 mm | 0-20A standard per circuit; up to 96 circuits; 0-600 VAC/VDC | Aluminum alloy housing with precious metal brush contacts | Quote |

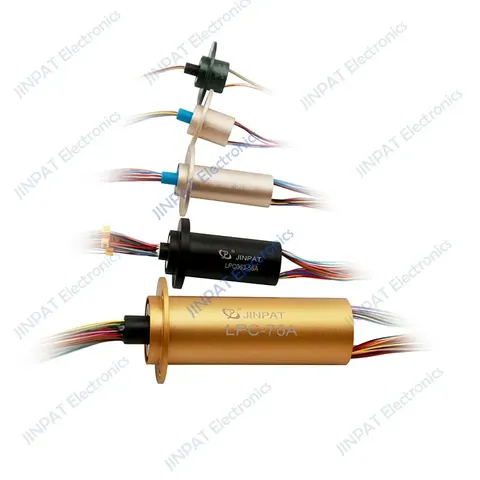

| JINPAT LPM-12 | OD 12.5-16 mm | 2A or more per circuit; 12+ circuits; 240 VAC/DC | Gold-plated precious metal contacts; engineered plastic housing | Quote |
| JINPAT LPM-24 | OD 12.5-16 mm | 2A or more per circuit; 24+ circuits; 240 VAC/DC | Gold-plated precious metal contacts; engineered plastic housing | Quote |
| JINPAT LPMS-08A | OD 5.5-11.1 mm | 2A or more per circuit; up to 12 circuits; 240 VAC/DC | Gold-plated precious metal contacts | Quote |
Compare the listed configurations. Confirm required options, operating conditions and current pricing with your quotation.
Compare the same configuration and operating conditions. Reference prices exclude the final accessory and delivery package.
Use a slip ring rated for the exact protocol, bandwidth, circuit arrangement and rotation duty. Request signal-integrity evidence and confirm shielding, channel isolation and compatibility with the complete cable assembly.
Specify bending and torsion separately using the actual routing, bend radius, rotation per unit length, speed, temperature and required cycle count. A drag-chain cable rating alone does not establish suitability for a robot joint.
Specify the through-bore inner diameter, outer housing diameter, axial length, maximum rotational speed (RPM), circuit count and current per ring, and lead-wire length or connector terminations.
