Robot Actuators & Joint Modules from China
Compare robot actuators by rated and peak torque, weight, transmission and interfaces. Rotary joint modules and linear actuators have different measurement requirements; thrust, peak torque and continuous torque must not be treated as equivalent.
Active filters include only matching published specifications. Missing details remain unconfirmed.
RATED TORQUE (N·M)
Any
PRICE BAND
GEAR TYPE
Showing 32 of 32 models
MyActuatorRMD-X8-P6-20-C-N (V3)
- Rated Torque
- 10 N·m
- Peak Torque
- 20 N·m
- Reduction ratio
- 6:1
Price on request
DamiaoDM-J4310-2EC V1.2 (24 V)
- Rated Torque
- 3.5 N·m
- Peak Torque
- 12.5 N·m
- Rated speed
- 120 rpm
Price on request
UnitreeGO-M8010-6
- Peak Torque
- 23.7 N.m
- Torque Constant
- 0.63895 Nm/A
- Max Speed
- 30 rad/s @24 VDC
Price on request
RobstrideRS00 (RobStride 00)
- Rated Torque
- 5 N·m
- Peak Torque
- 14 N·m; model parameter table
- Reduction ratio
- 10:1
Price on request
RealManWHJ03-M-D33-100-N
- Rated Torque
- 3 N.m
- Peak Torque
- 30 N.m
- Rated Speed
- 30 rpm (24V) / 60 rpm (48V)
Price on request
RealManWHJ10-M-D50-80-B
- Rated Torque
- 10 N.m
- Rated Speed
- 37.5 rpm (24V) / 75 rpm (48V)
- Reduction Ratio
- 80:1
Price on request
RealManWHJ10-M-D50-80-N
- Rated Torque
- 10 N.m
- Rated Speed
- 37.5 rpm (24V)
- Reduction Ratio
- 80:1
Price on request
RealManWHJ30-S-D60-80-B
- Rated Torque
- 30 N.m
- Rated Speed
- 37.5 rpm (24V) / 75 rpm (48V)
- Reduction Ratio
- 80:1
Price on request
RealManWHJ60-S-D70-100-B
- Rated Torque
- 60 N.m
- Peak Torque
- 180 N.m
- Rated Speed
- 30 rpm (24V) / 60 rpm (48V)
Price on request

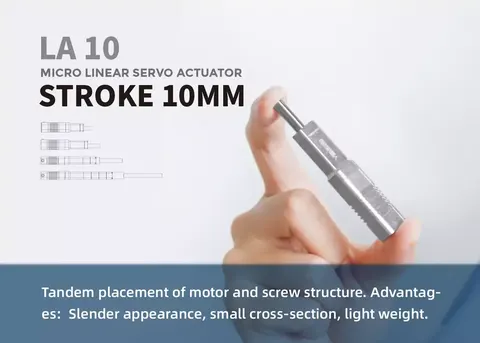

Inspire RobotsLA10
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 10 mm
- Peak Thrust
- 56-100 N
Price on request
Inspire RobotsLA16
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 16 mm
- Peak Thrust
- 56-100 N
Price on request
Inspire RobotsLA30
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 30 mm
- Peak Thrust
- 50 N
Price on request

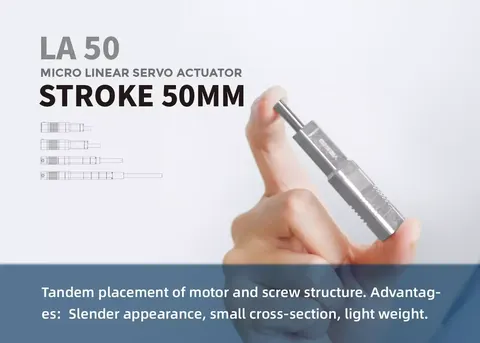

Inspire RobotsLA50
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 50 mm
- Peak Thrust
- 50 N
Price on request
Inspire RobotsLAS10
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 10 mm
- Peak Thrust
- 31-56 N
Price on request
Inspire RobotsLAS16
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 16 mm
- Peak Thrust
- 31-56 N
Price on request

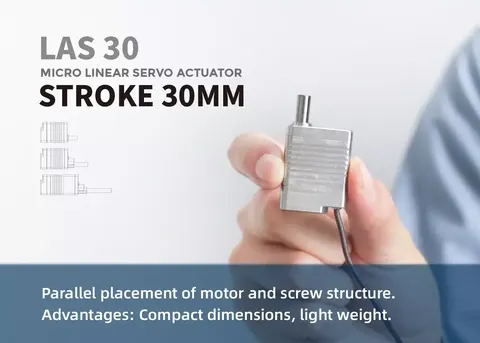

Inspire RobotsLAS30
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 30 mm
- Peak Thrust
- 80 N
Price on request

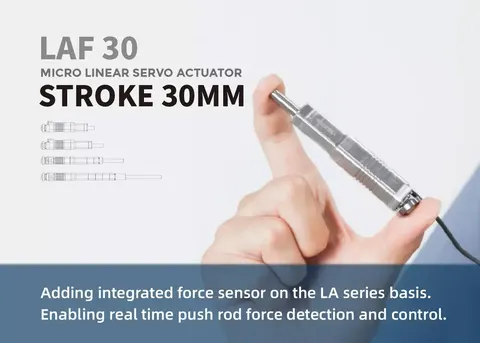

Inspire RobotsLAF30
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 30 mm
- Peak Thrust
- 50 N
Price on request
Inspire RobotsLASF16
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 16 mm
- Peak Thrust
- 31-56 N
Price on request

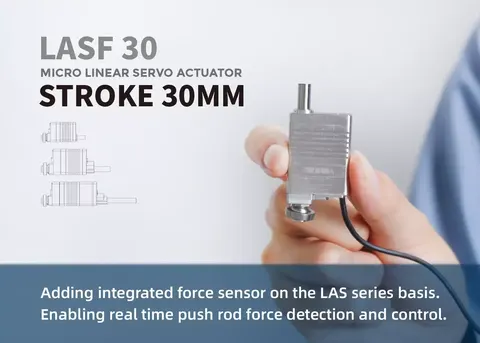

Inspire RobotsLASF30
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 30 mm
- Peak Thrust
- 80 N
Price on request
Inspire RobotsBLAC05
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 5 mm
- Peak Thrust
- 250 N
Price on request

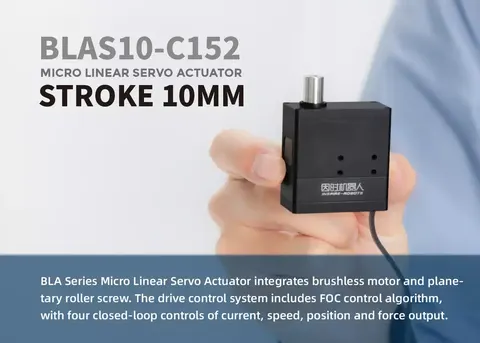

Inspire RobotsBLAS10
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 10 mm
- Peak Thrust
- 150 N
Price on request

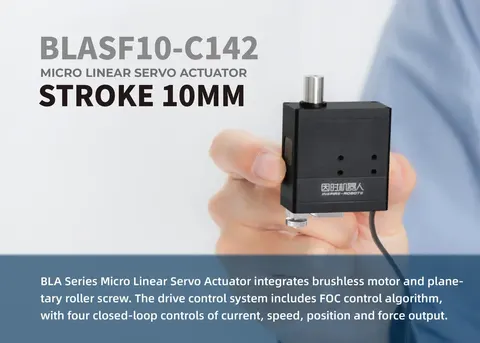

Inspire RobotsBLASF10
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 10 mm
- Peak Thrust
- 150 N
Price on request

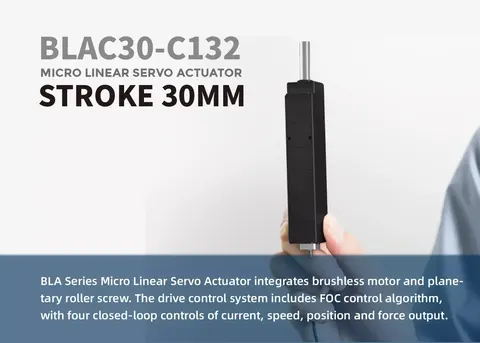

Inspire RobotsBLAC30
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 30 mm
- Peak Thrust
- 120 N
Price on request

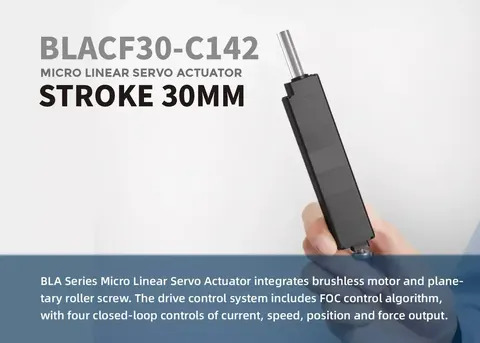

Inspire RobotsBLACF30
- Type
- Micro servo electric cylinder (integrated driver)
- Stroke
- 30 mm
- Peak Thrust
- 120 N
Price on request
No models match those filters. Tell us what you need—we source beyond the catalog.
Request a quoteCompare 32 matching models
| Model | Gear | Encoder | Quote | ||||
|---|---|---|---|---|---|---|---|
| CubeMarsAK80-9 KV100 (classic) | 9 | 18 | Planetary | Single 14-bit magnetic encoder | 0.485 | <$1k | Quote |
| MyActuatorRMD-X8-P6-20-C-N (V3) | 10 | 20 | Planetary | Dual encoder; 14 / 14-bit resolution | 0.78 | On request | Quote |
| DamiaoDM-J4310-2EC V1.2 (24 V) | 3.5 | 12.5 | Planetary | Two 16-bit single-turn magnetic encoders | 0.325 | On request | Quote |
| UnitreeGO-M8010-6 | On request | 23.7 | On request | 15-bit rotor absolute encoder | 0.53 | On request | Quote |
| RobstrideRS00 (RobStride 00) | 5 | 14 | Planetary | Two magnetic encoders; 14-bit single-turn absolute resolution | On request | On request | Quote |
| RobStrideRobStride 01 | 6 | 17 | On request | Single absolute encoder | 0.38 | On request | Quote |
| RobStrideRobStride 02 | 6 | 17 | On request | Dual absolute encoders | 0.38 | On request | Quote |
| RobStrideRobStride 03 | 20 | 60 | On request | Dual absolute encoders | 0.9 | On request | Quote |
| RobStrideRobStride 04 | 40 | 120 | On request | Dual absolute encoders | 1.42 | On request | Quote |
| RobStrideRobStride 05 | 1.6 | 5.5 | On request | Dual absolute encoders | 0.191 | On request | Quote |
| RobStrideRobStride 06 | 11 | 36 | On request | Dual absolute encoders | 0.621 | On request | Quote |
| RealManWHJ03-M-D33-100-N | 3 | 30 | On request | 16-bit incremental + 18-bit absolute | 0.17 | On request | Quote |
| RealManWHJ10-M-D50-80-B | 10 | On request | On request | 16-bit incremental + 18-bit absolute | 0.455 | On request | Quote |
| RealManWHJ10-M-D50-80-N | 10 | On request | On request | 16-bit incremental + 18-bit absolute | 0.445 | On request | Quote |
| RealManWHJ30-S-D60-80-B | 30 | On request | On request | 16-bit incremental + 18-bit absolute | 0.75 | On request | Quote |
| RealManWHJ60-S-D70-100-B | 60 | 180 | On request | 16-bit incremental + 18-bit absolute | 1.04 | On request | Quote |
| RealManWHJ120-S-D88-100-E | 120 | On request | On request | 16-bit incremental + 18-bit absolute | 2.3 | On request | Quote |
| Inspire RobotsLA10 | On request | On request | On request | On request | On request | On request | Quote |
| Inspire RobotsLA16 | On request | On request | On request | On request | 0.023 | On request | Quote |
| Inspire RobotsLA30 | On request | On request | On request | On request | 0.03 | On request | Quote |
| Inspire RobotsLA50 | On request | On request | On request | On request | 0.042 | On request | Quote |
| Inspire RobotsLAS10 | On request | On request | On request | On request | On request | On request | Quote |
| Inspire RobotsLAS16 | On request | On request | On request | On request | On request | On request | Quote |
| Inspire RobotsLAS30 | On request | On request | On request | On request | 0.035 | On request | Quote |
| Inspire RobotsLAF30 | On request | On request | On request | On request | On request | On request | Quote |
| Inspire RobotsLASF16 | On request | On request | On request | On request | 0.036 | On request | Quote |
| Inspire RobotsLASF30 | On request | On request | On request | On request | 0.044 | On request | Quote |
| Inspire RobotsBLAC05 | On request | On request | On request | On request | 0.16 | On request | Quote |
| Inspire RobotsBLAS10 | On request | On request | On request | On request | 0.087 | On request | Quote |
| Inspire RobotsBLASF10 | On request | On request | On request | On request | 0.093 | On request | Quote |
| Inspire RobotsBLAC30 | On request | On request | On request | On request | 0.113 | On request | Quote |
| Inspire RobotsBLACF30 | On request | On request | On request | On request | 0.112 | On request | Quote |
Compare the listed configurations. Confirm required options, operating conditions and current pricing with your quotation.
Prices are reference information, not offers. Confirm the exact configuration, quantity, destination, taxes and delivery terms in a written quote.
