Benewake TF03 Single-Point ToF LiDAR - Weight 86 +/-3 g

Benewake TF03 Long-Range Single-Point LiDAR

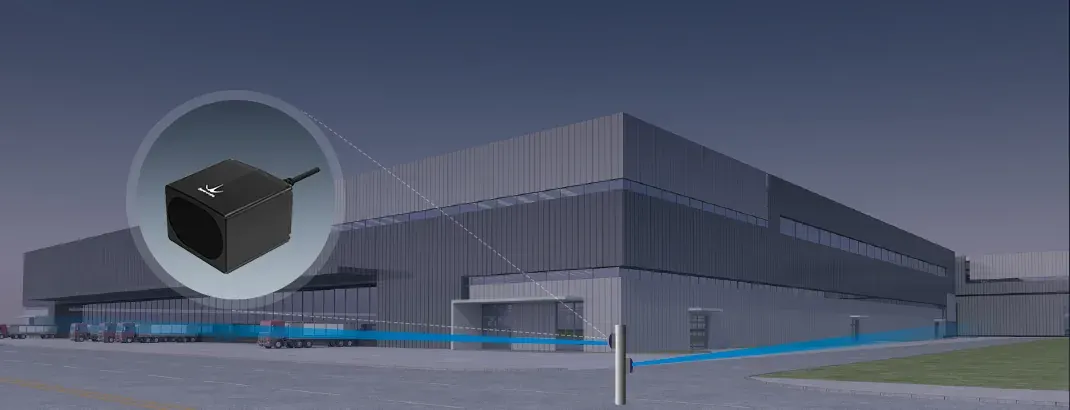

Industrial single-point lidar ranging 0.1 to 180 m with output rates up to 9800 Hz and strong 100 klux ambient light immunity. The 86 g IP67 aluminium module draws under 1 W and offers UART, CAN, RS-232 and RS-485 interfaces.

Price on request

TypeSingle-point ToF lidar

Range0.1-180 m

Frame Rate1-9800 Hz

Request a quote for this model Ask a question on WhatsApp

Product documentation Configuration & quotation

Technical specifications

Product documentation

MANUFACTURER-REPORTED SPECIFICATIONS

Type	Single-point ToF lidar
Range	0.1-180 m
Frame Rate	1-9800 Hz
Power	<=1 W
IP Rating	IP67
Weight	86 +/-3 g
Dimensions	44 x 43 x 32 mm
Interface	UART/CAN/RS-232/RS-485
Ambient Light Immunity	100 klux

Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.

Supplier

Benewake (Beijing) Co., Ltd. 北醒（北京）光子科技有限公司

Beijing · est. 2015 · 100–500 employees

Benewake is a Beijing lidar specialist covering everything from 1.35 g single-point TF modules to 3.8 kg long-range scanners, with detection ranges from 0.05 m to 1500 m. Its TF, CE30, AD2 and Horn families are widely exported for drone altimetry, AGV obstacle avoidance, traffic sensing and infrastructure monitoring.

View profile

Downloads

Manufacturer datasheet

External source

Product documentation

Manufacturer and distributor references for model selection and technical review.

Configuration & quotation

Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.

Price range (USD)Price on request

MOQ1

Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
