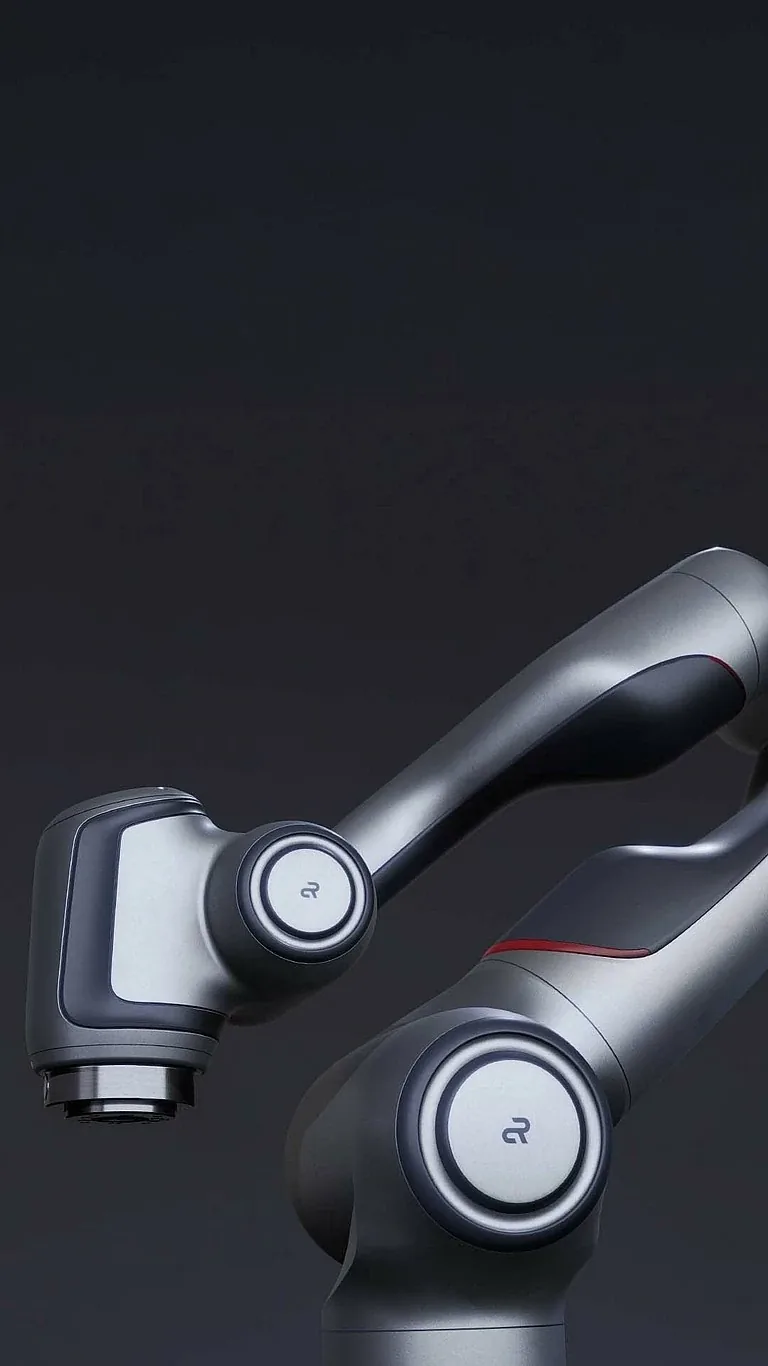

Agile Robots Diana 7 7-Axis Force-Controlled Cobot
Seven-axis cobot with joint torque sensors in every axis, 7 kg payload, 923 mm reach and +/-0.05 mm repeatability in a 26 kg body. Redundant kinematics let it work around obstacles, and force control suits delicate insertion and polishing.
Price on request
Payload7 kg
Reach923 mm
DoF7
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Payload | 7 kg |
| Reach | 923 mm |
| DoF | 7 |
| Repeatability | ±0.05 mm |
| Weight | 26 kg |
| IP Rating | IP54 |
| Force Sensing | Joint torque sensors in all 7 axes |
| Mounting | Floor / Wall / Ceiling |
Manufacturer specifications for the listed model. Confirm options, operating conditions and integration requirements in your configuration-specific quotation.
Supplier
Agile Robots (China) Co., Ltd. 思灵机器人科技（北京）有限公司
Beijing · est. 2018 · 500–1,000 employees
Agile Robots is a Sino-German robotics company with R&D in Beijing and Munich, focused on joint-torque force control combined with 3D vision. The seven-axis Diana 7 offers 7 kg payload, 923 mm reach and +/-0.05 mm repeatability, and is used for delicate insertion, polishing and inspection in electronics and medical production.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.
Discuss this configurationRelated models
Considering Agile Robots Diana 7 7-Axis Force-Controlled Cobot? Share the quantity, configuration and destination so we can check fit, availability and quote requirements.
Request a quote— The Sourcebotics sourcing desk
