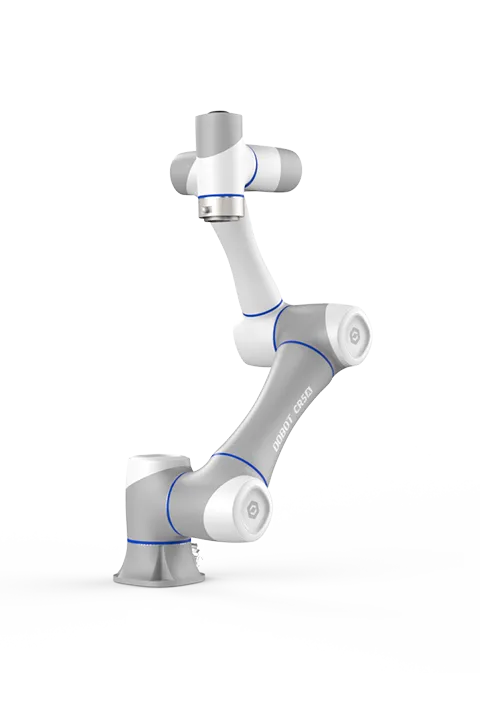

DOBOT CR5A Collaborative Robot
Six-axis cobot with a 5 kg payload and 900 mm working radius for machine tending, handling and assembly. CR5A uses DobotStudio Pro programming and industrial I/O; select the controller and application accessories as part of the complete cell.
Price on requestRequest an itemized quotation for the selected configuration, accessories, support and delivery destination.
Maximum payload5 kg
Working radius900 mm
Arm weight25 kg
Choosing this model
Read the product documentationSourcebotics selection notes, based on the published documentation.
Application fit
- Machine tending and handling within a 900 mm work envelope.
- Assembly cells requiring PLC integration and programmable I/O.
Integration planning
- Confirm controller supply voltage, fieldbus options and cabling.
- Specify the gripper, sensing and commissioning package separately.
Selection considerations
- Current page lists 4 m/s; guide V1.8 lists 2 m/s. Agree the shipped revision and loaded cycle test.
- SafeSkin and the teach pendant are optional items on the product page.
Technical specifications
Product documentationARM
| Maximum payload | 5 kgReference ↗ |
| Working radius | 900 mmReference ↗ |
| Arm weight | 25 kgReference ↗ |
| Maximum linear speed | 4 m/s on current manufacturer page; revision-dependentReference ↗ |
INTEGRATION
| Repeatability | ±0.02 mmReference ↗ |
| Arm protection / temperature | IP54; 0–50°CReference ↗ |
| Tool I/O | 2 DI, 2 DO, 2 AI; RS-485 multiplexes the analog inputsReference ↗ |
| Controller family | CC262 AC or DC for CR3A–CR16A in guide V1.8Reference ↗ |
| Arm-to-controller cable | 5 m in guide V1.8Reference ↗ |
Manufacturer specifications for the listed model. Confirm options, operating conditions and integration requirements in your configuration-specific quotation.
Supplier
SHENZHEN DOBOT CORP LTD 深圳市越疆科技股份有限公司
Shenzhen · est. 2015 · 1,065 Group employees (30 Jun 2026)
DOBOT develops collaborative, desktop and education robot arms, alongside humanoid and research platforms. The manufacturer is SHENZHEN DOBOT CORP LTD, listed in Hong Kong under code 2432. Specify the exact robot family, controller, tooling and application software when comparing configurations.
Product documentation
Manufacturer and distributor references for model selection and technical review. Specification sources last reviewed: September 8, 2026.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.
Discuss this configurationFAQ
Why should the robot revision be on the quotation?
The current page lists 4 m/s, while the May 2024 guide lists 2 m/s. Ask for the exact arm, controller and firmware documentation with the quote.
Are SafeSkin and the teach pendant standard?
The current manufacturer page marks them as optional. List each required accessory explicitly.
