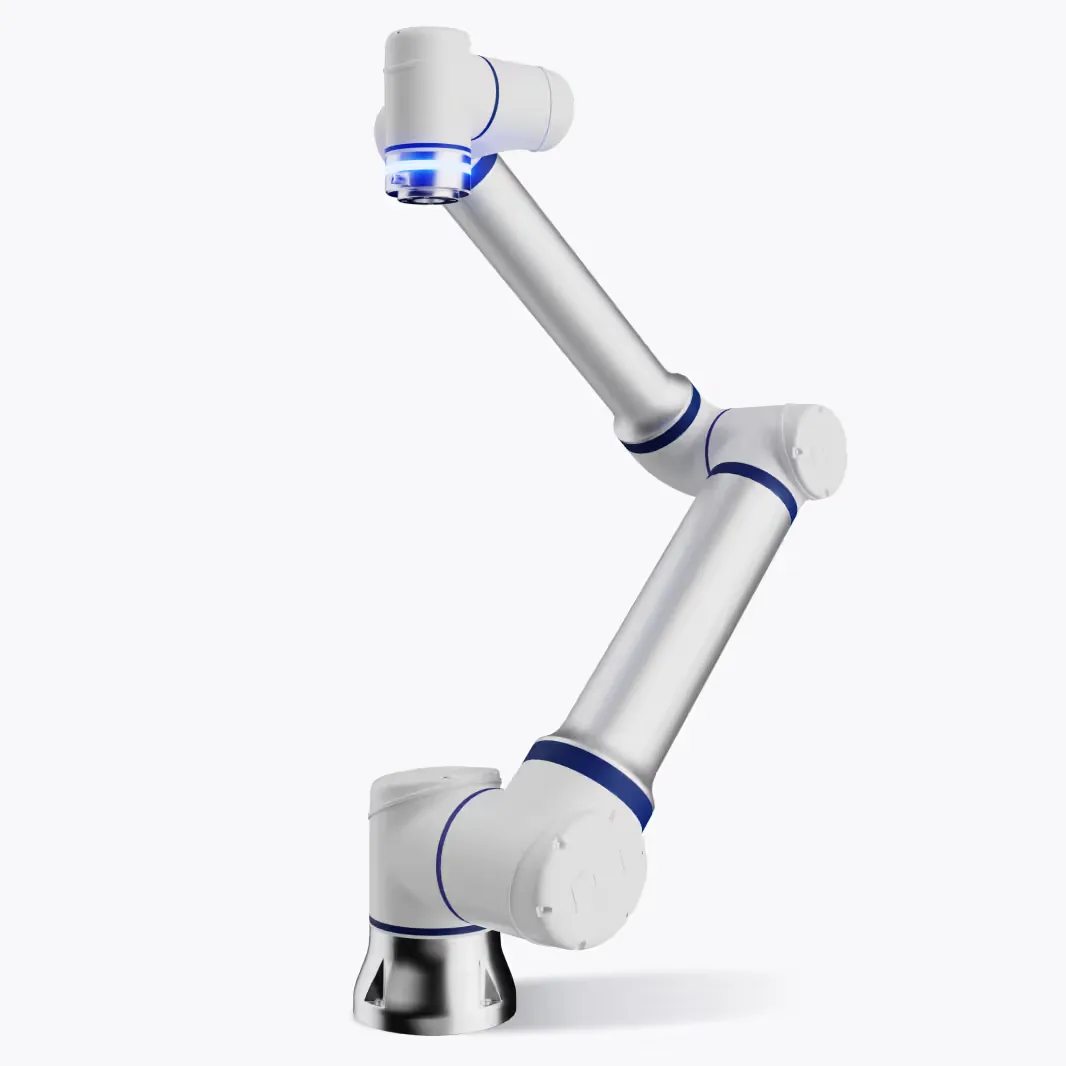

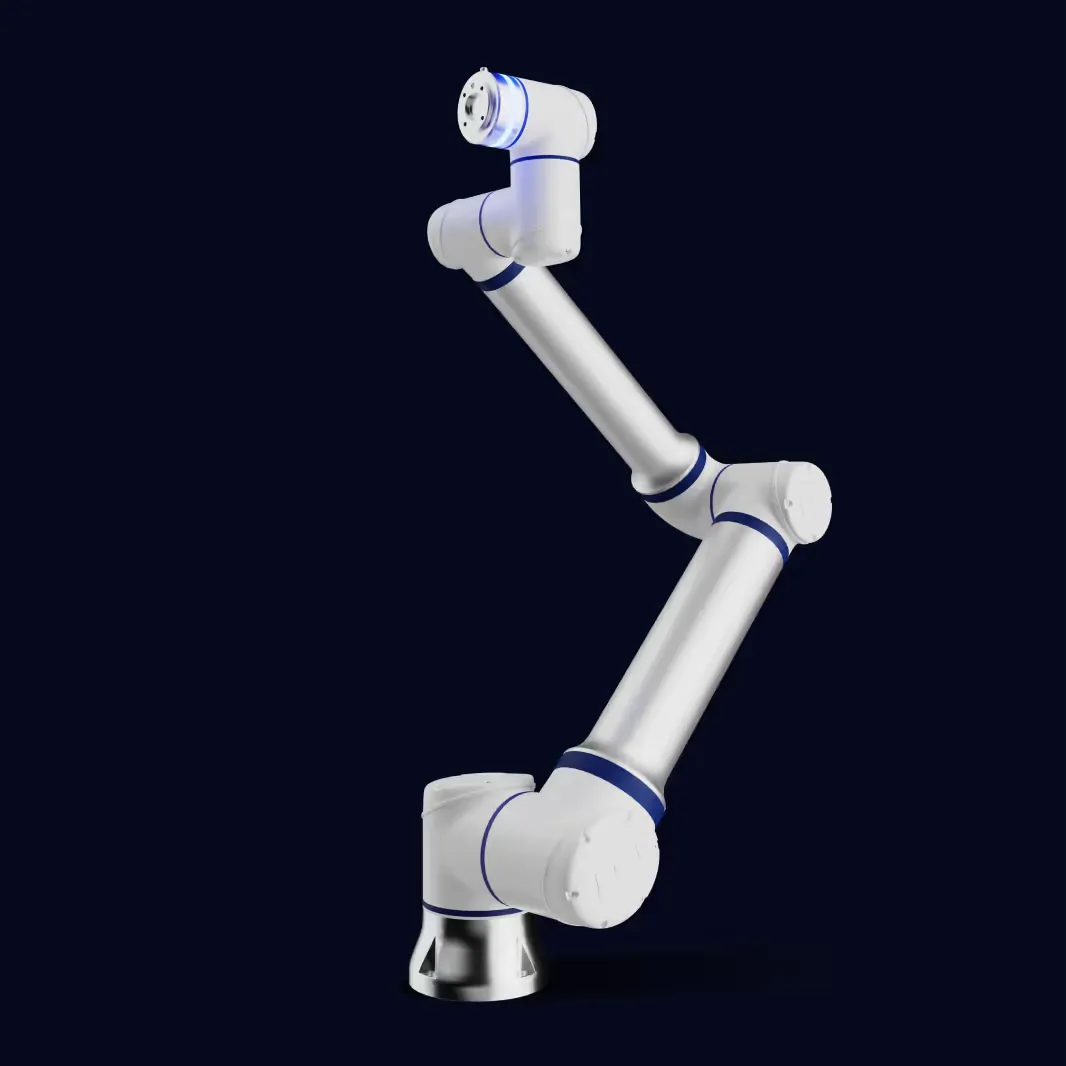

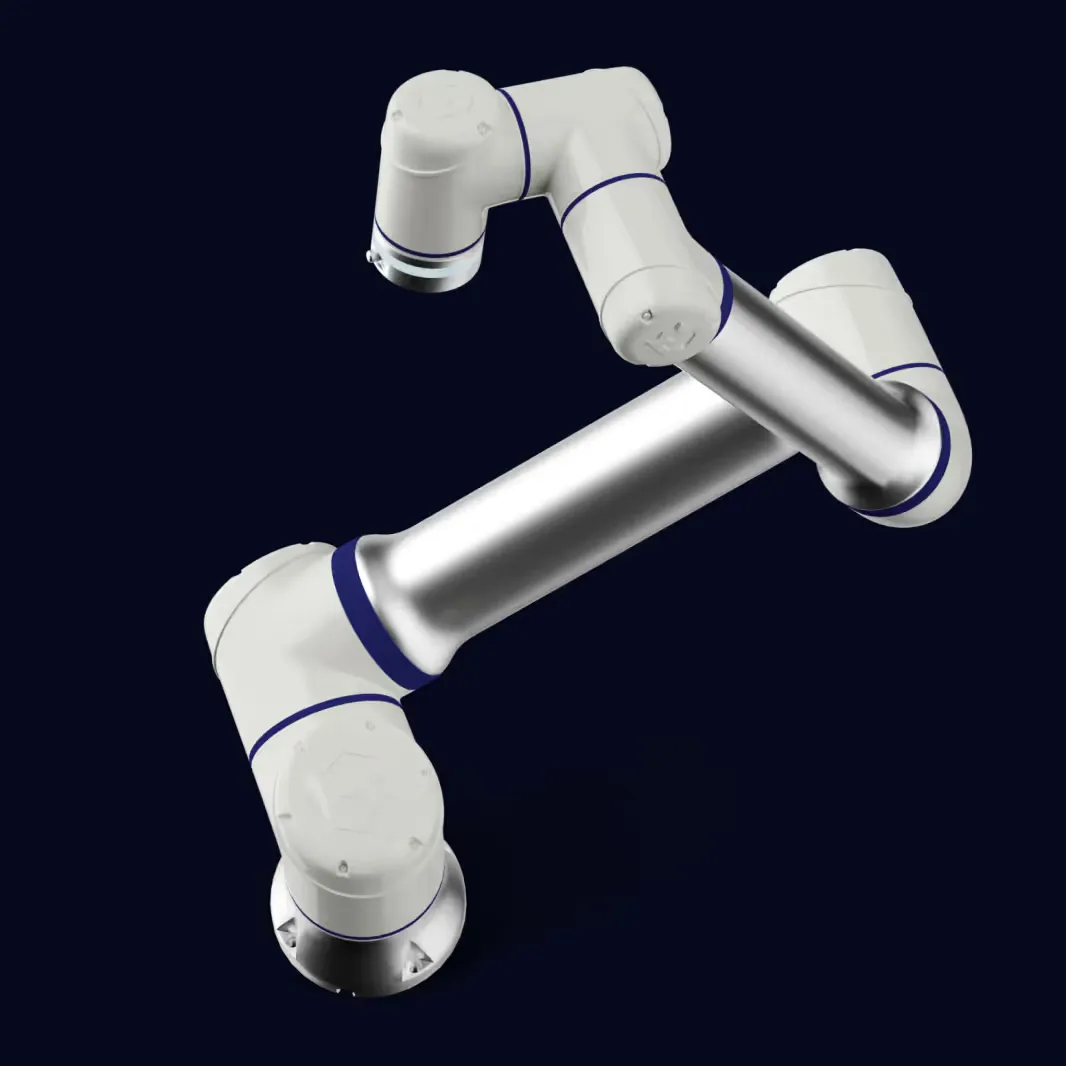

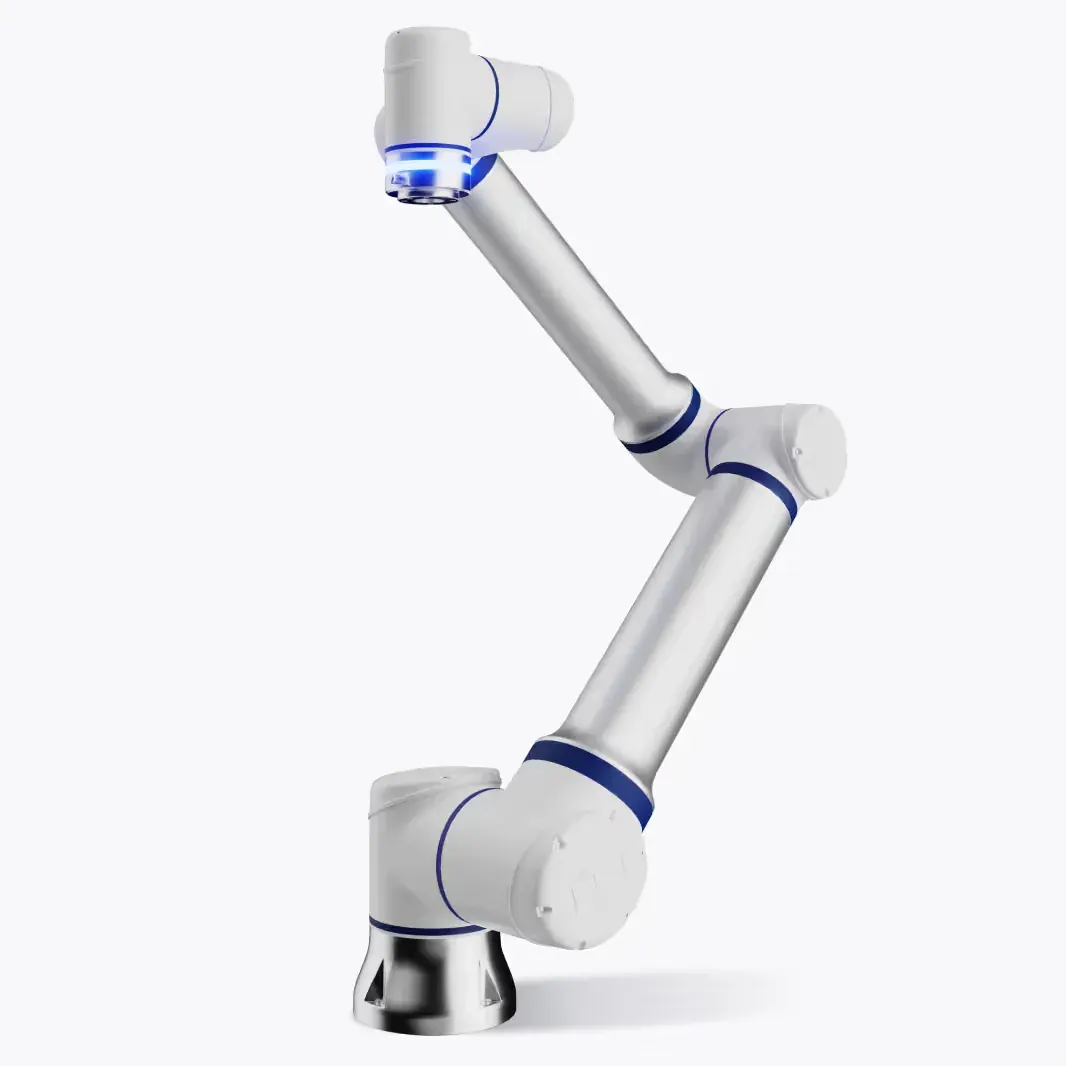

Elite Robots CS612 Collaborative Robot
Twelve-kilogram cobot with 1304 mm reach, 34 kg body and IP65 protection upgradeable to IP68. The combination of long reach, wash-down rating and 3.4 m/s TCP speed makes it a popular palletizing and welding platform.
Price on request
Payload12 kg
Reach1304 mm
DoF6
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Payload | 12 kg |
| Reach | 1304 mm |
| DoF | 6 |
| Repeatability | ±0.05 mm |
| Weight | 34 kg |
| Mounting | Floor / Wall / Ceiling (any orientation) |
| IP Rating | IP65 (IP68 optional) |
| Max Speed | 3.4 m/s |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Supplier
Suzhou Elite Robot Co., Ltd. 苏州艾利特机器人有限公司
Suzhou, Jiangsu · est. 2016 · 100–500 employees
Elite Robots of Suzhou designs collaborative robots with its own joint modules and controller. The CS series offers 3-30 kg payload with IP65 bodies upgradeable to IP68 and repeatability to +/-0.03 mm, while the proven EC series remains a cost-effective choice for machine tending, welding and palletizing across Europe and Asia.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
