Han's Robot Elfin E3 Collaborative Robot
Compact 3 kg cobot with 590 mm reach and unlimited +/-360 degree rotation on every joint, allowing motion paths impossible for conventional arms. Built with Han's own integrated joint modules and rated for 35,000 hours of service.
Price on request
Payload3 kg
Reach590 mm
DoF6
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Payload | 3 kg |
| Reach | 590 mm |
| DoF | 6 |
| Repeatability | ±0.02 mm |
| Weight | 18 kg |
| Max Speed | 3.0 m/s |
| IP Rating | IP54 (IP66 optional) |
| Mounting | Floor / Wall / Ceiling (any orientation) |
| Joint Range | ±360° all joints |
| Service Life | 35,000 h |
Manufacturer specifications for the listed model. Confirm options, operating conditions and integration requirements in your configuration-specific quotation.
Supplier
Han's Robot Co., Ltd. 大族机器人有限公司
Shenzhen, Guangdong · est. 2017 · 500–1,000 employees

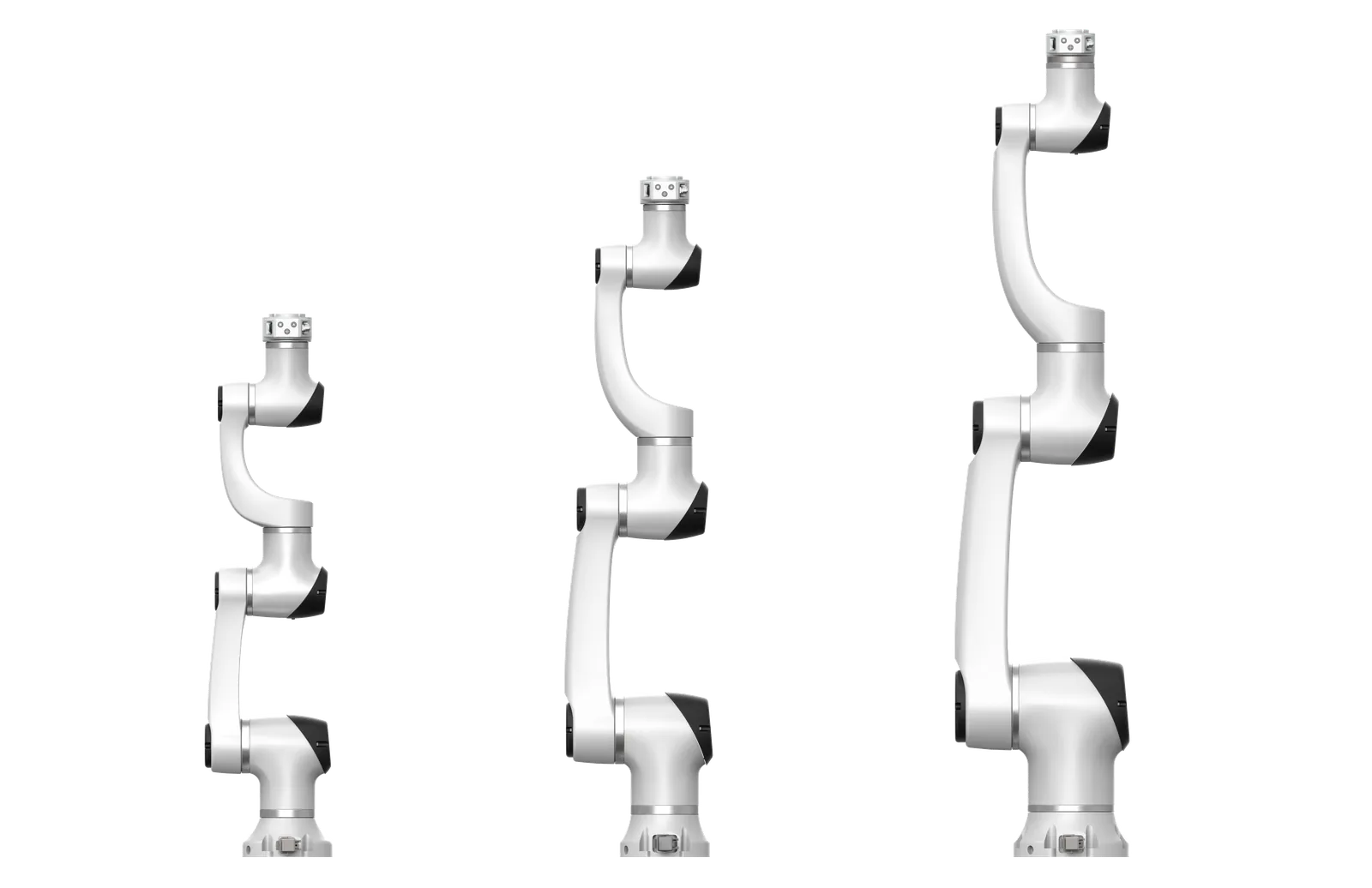

Han's Robot, part of the Han's Laser group, produces the Elfin collaborative robot family together with its own integrated joint modules, encoders and drives. Elfin arms offer 3-15 kg payload, 360-degree joint rotation, +/-0.02 mm repeatability and optional IP66 protection for welding, polishing, assembly and laboratory work.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.
Discuss this configurationRelated models
Considering Han's Robot Elfin E3 Collaborative Robot? Share the quantity, configuration and destination so we can check fit, availability and quote requirements.
Request a quote— The Sourcebotics sourcing desk
