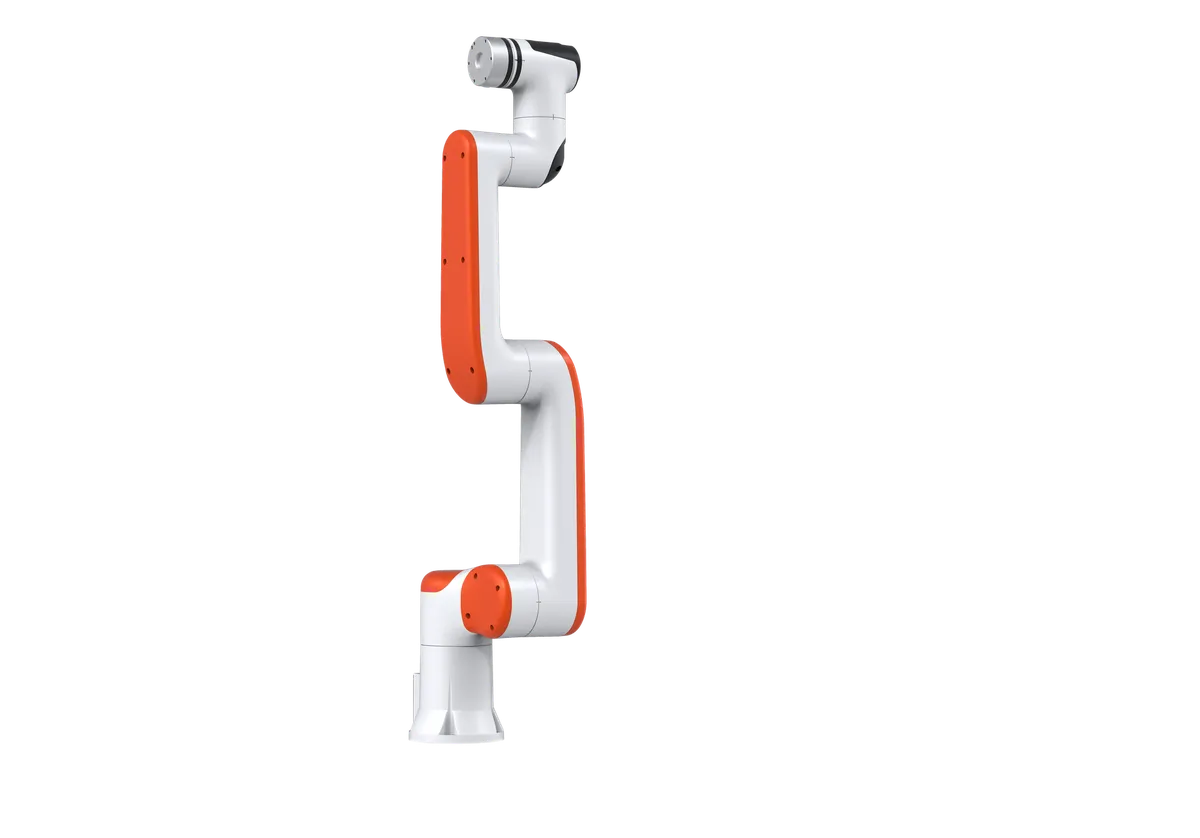

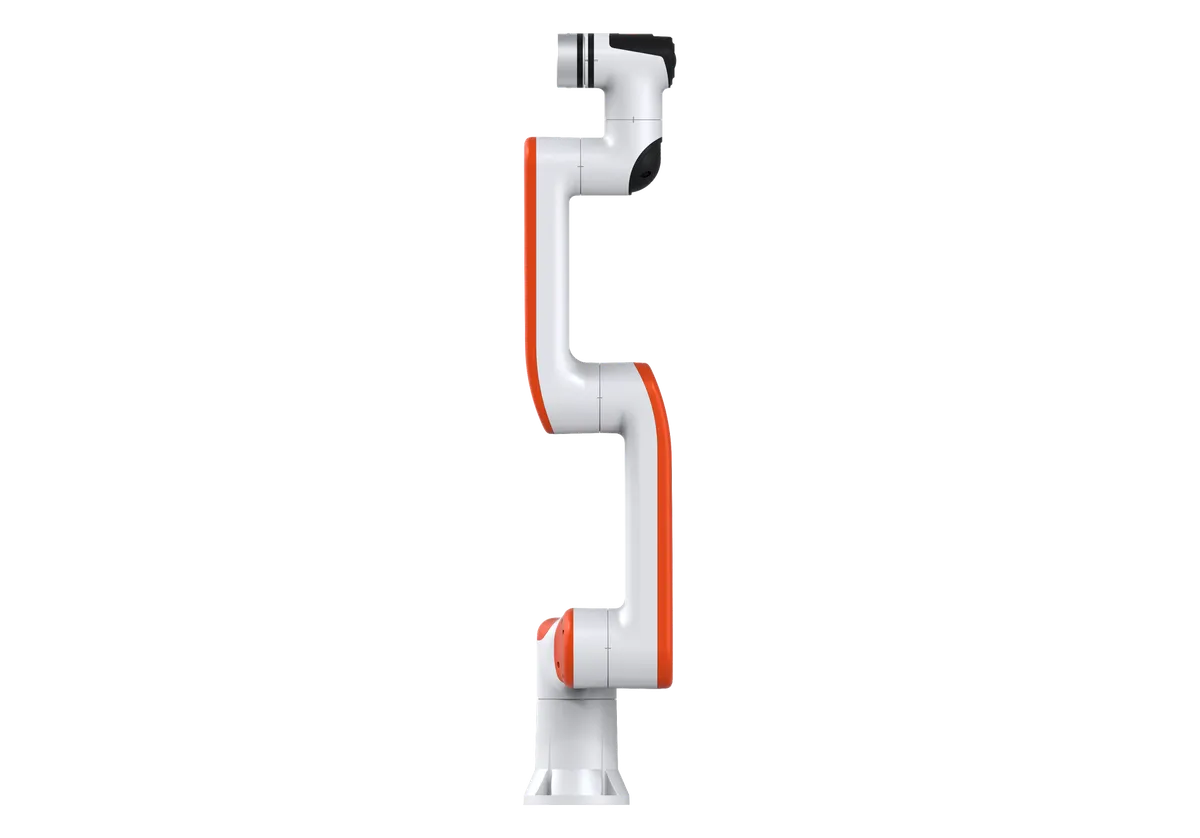

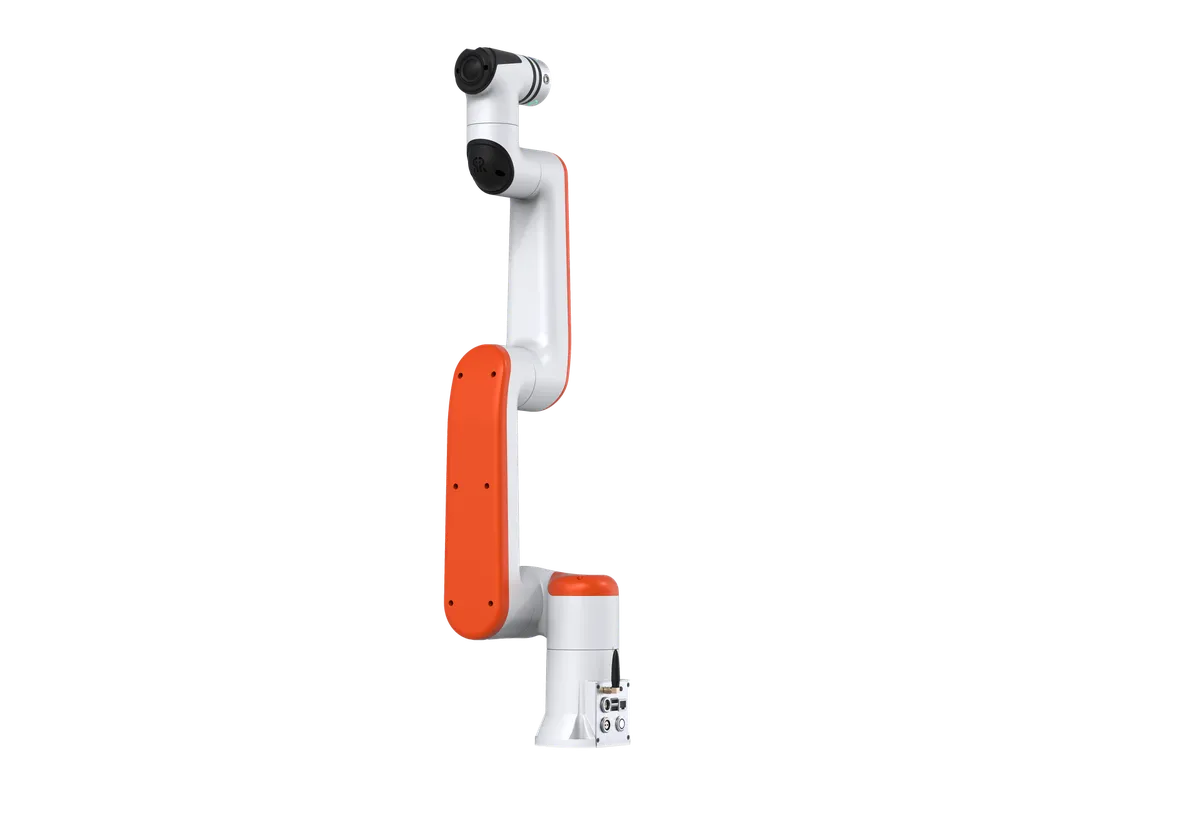

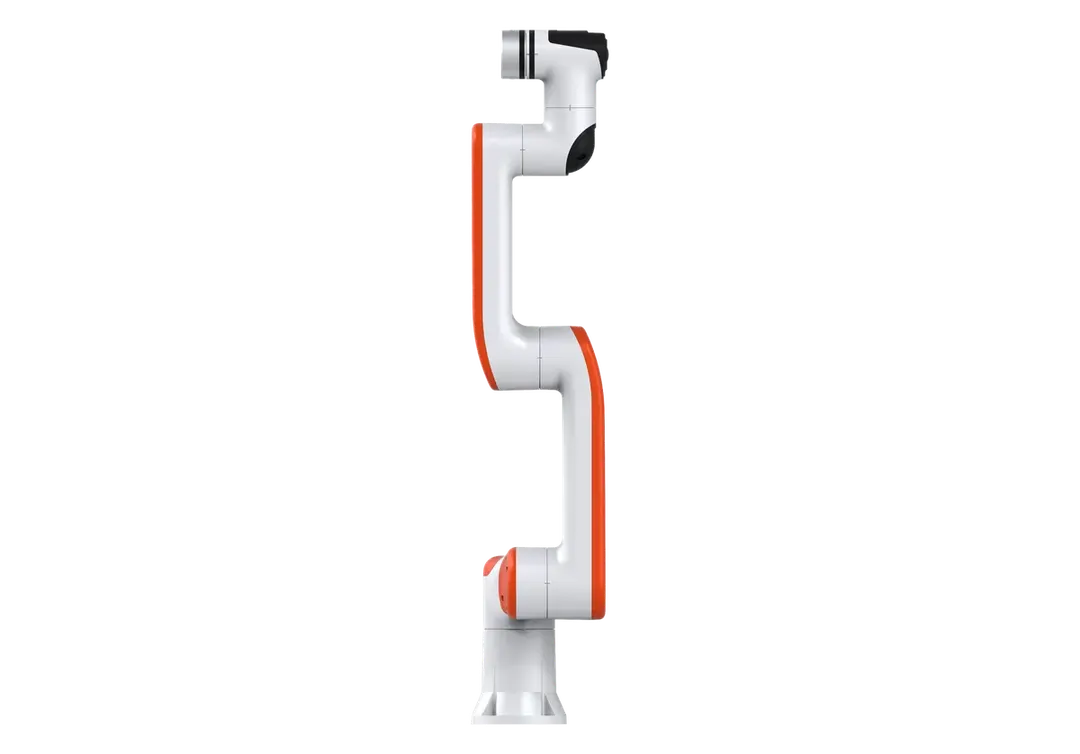

RealMan ECO65-B Ultra-Lightweight Robot Arm
Cost-optimised 6-DoF arm keeping the 5 kg payload, 610 mm reach and +/-0.05 mm repeatability of the RM65 at a lower price point. A practical choice for volume OEM integration into AMRs, kiosks and teaching platforms.
Price on request
Payload5 kg
Reach610 mm
DoF6
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Payload | 5 kg |
| Reach | 610 mm |
| DoF | 6 |
| Repeatability | ±0.05 mm |
| Weight | 7.8 kg |
| Max Speed | ≤1.8 m/s |
| Voltage | DC 24 V |
| Mounting | Any orientation |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Supplier
RealMan Intelligent Technology (Beijing) Co., Ltd. 睿尔曼智能科技（北京）有限公司
Beijing · est. 2018
RealMan develops robot arms, integrated joint modules and robot platforms for integration and research. Its developer center separates arm and controller generations. Payload, power, sensing and software support must be checked for the exact model; the documented GEN72 payload is 2 kg.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.
