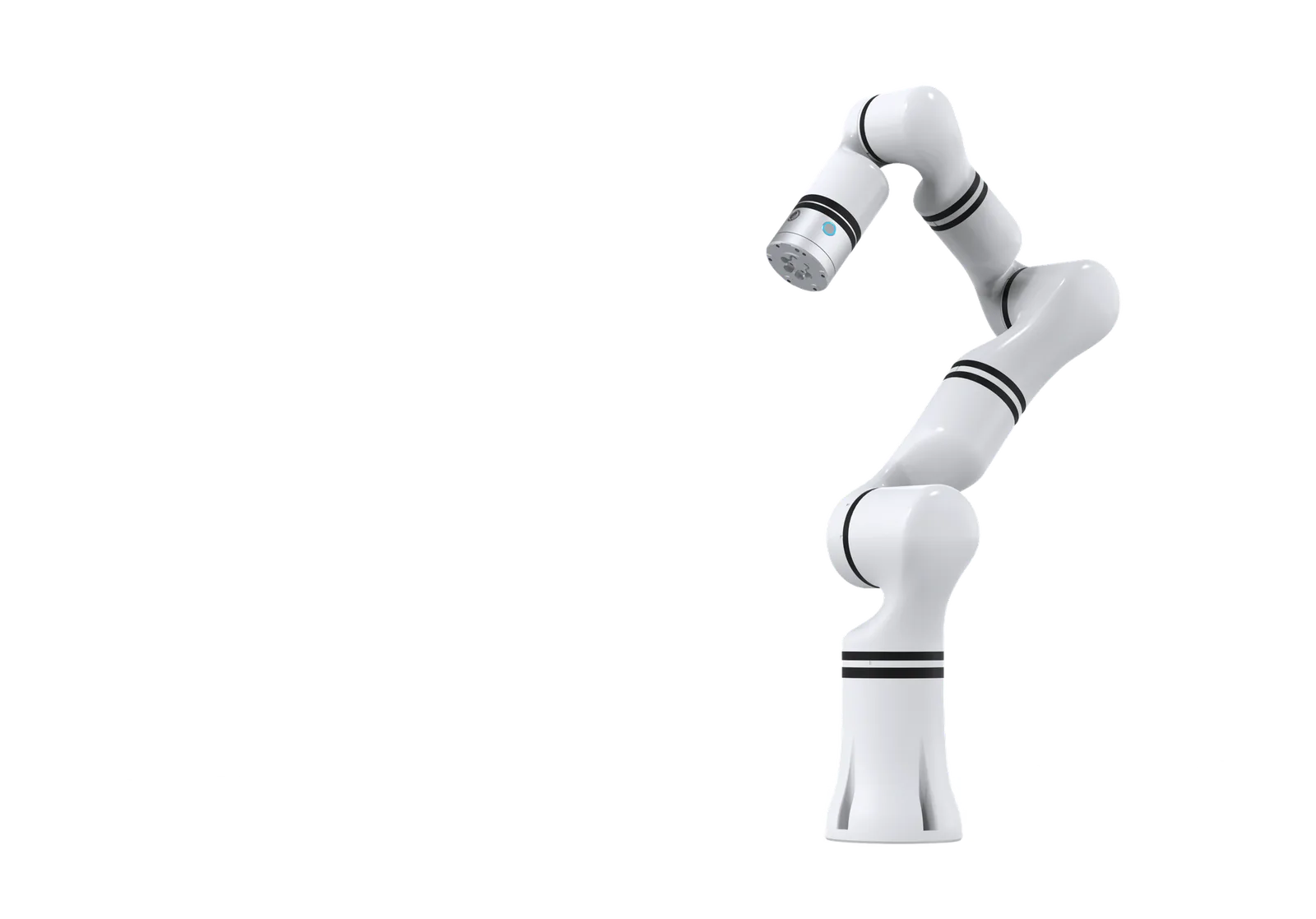

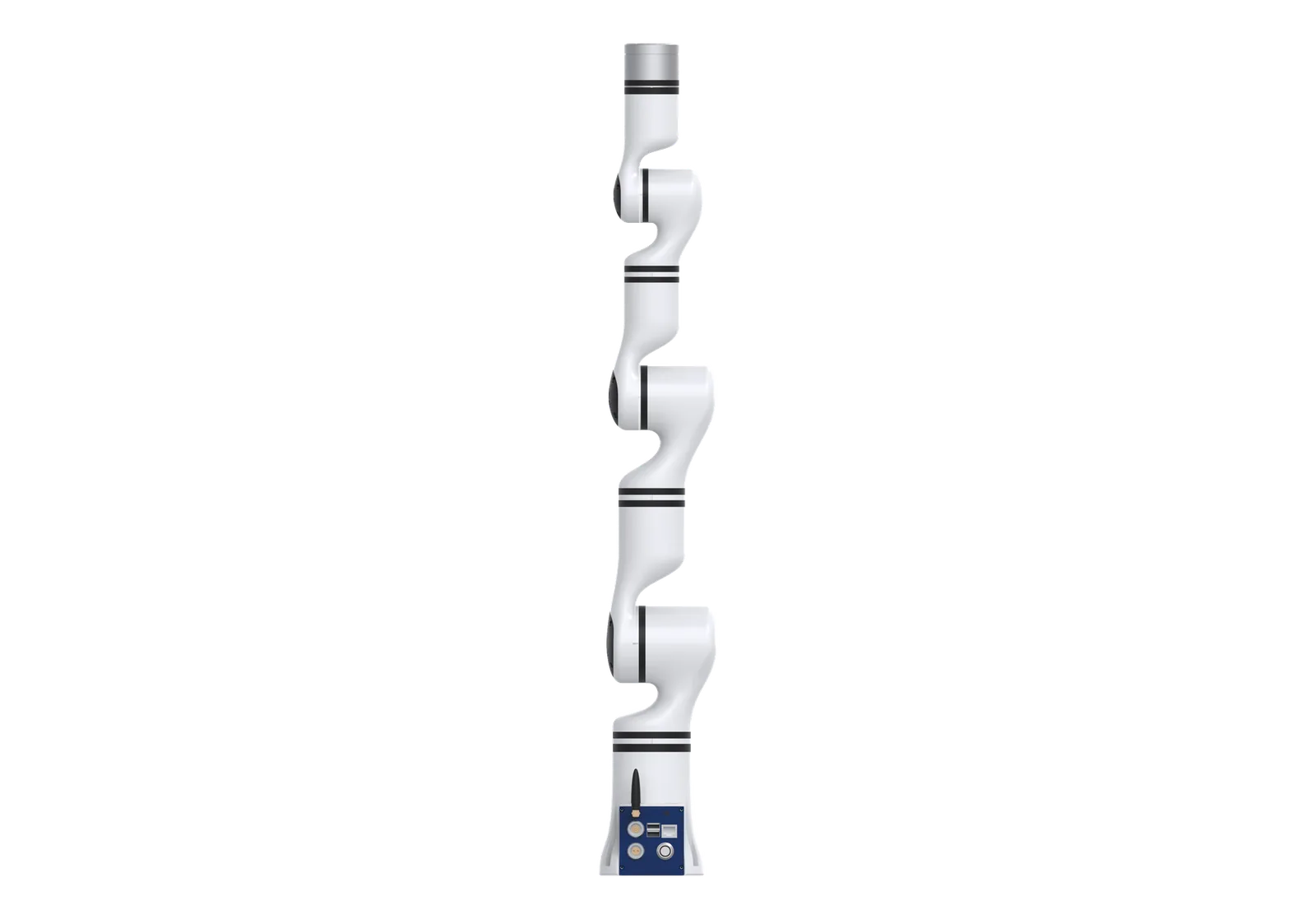

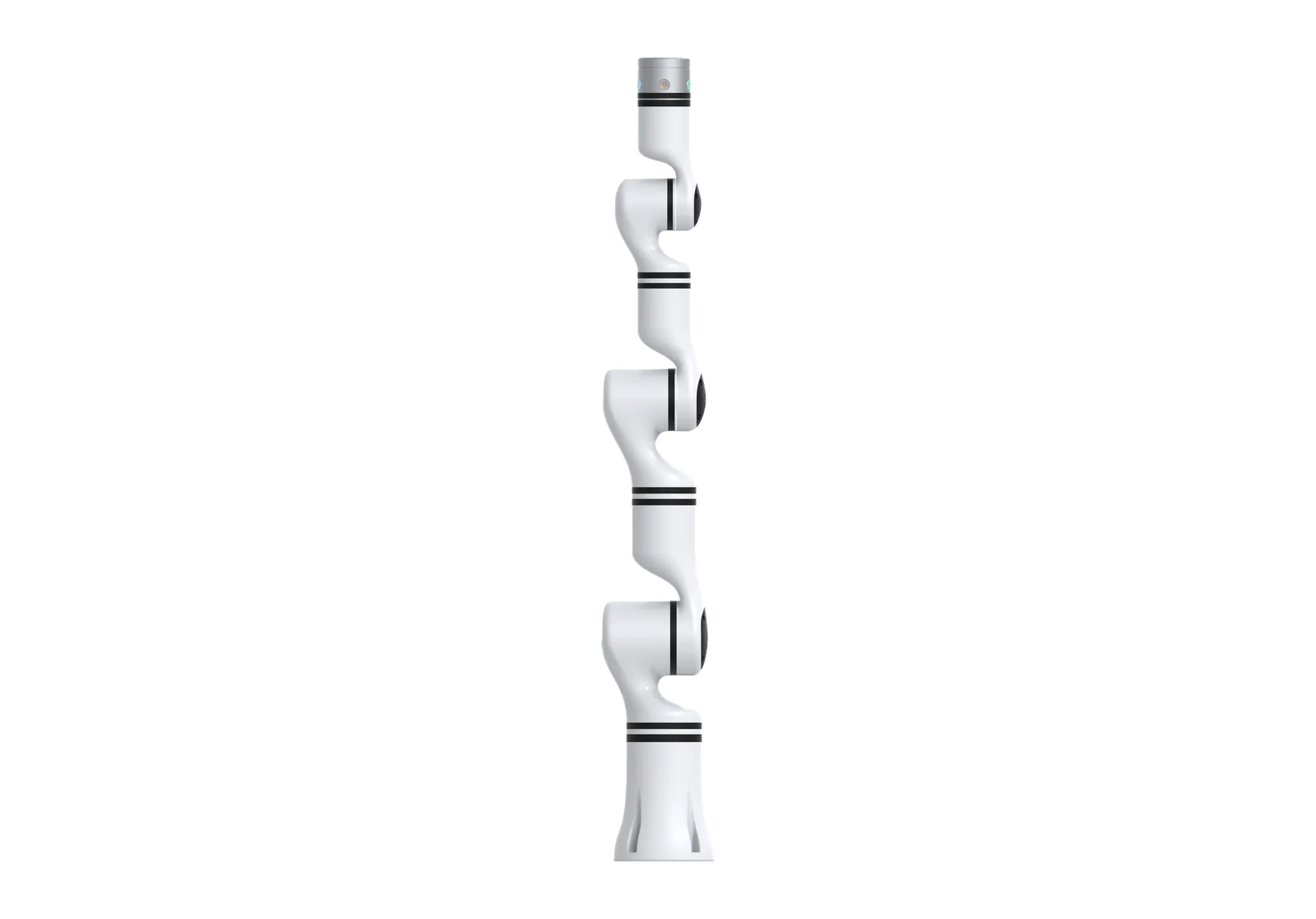

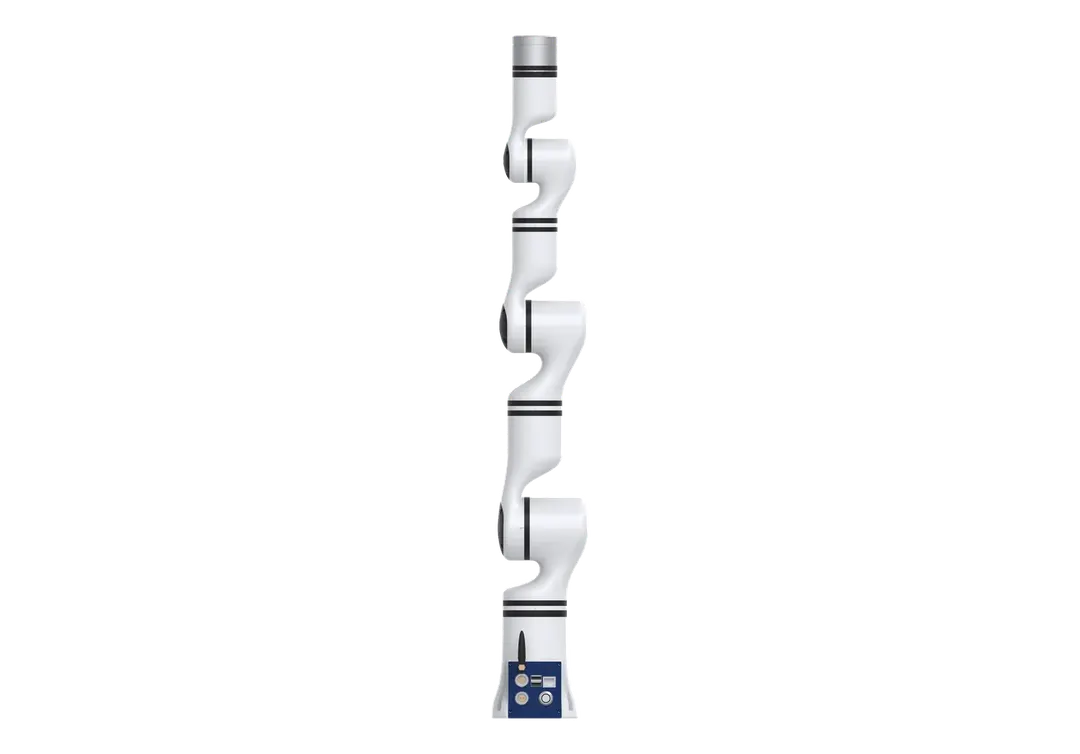

RealMan RM65-6F Ultra-Lightweight Robot Arm
Force-sensing version of the RM65 with a built-in six-axis force-torque sensor rated 200 N and 7 Nm at +/-0.5 percent full-scale accuracy. Enables compliant insertion, contour following and safe human contact on a 7.3 kg arm.
Price on request
Payload5 kg
Reach627 mm
DoF6
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Payload | 5 kg |
| Reach | 627 mm |
| DoF | 6 |
| Repeatability | ±0.05 mm |
| Weight | 7.3 kg |
| Max Speed | ≤1.8 m/s |
| Voltage | DC 24 V |
| Mounting | Any orientation |
| Force Sensor | Built-in 6-axis, 200 N / 7 N·m, ±0.5 %FS |
Manufacturer specifications for the listed model. Confirm options, operating conditions and integration requirements in your configuration-specific quotation.
Supplier
RealMan Intelligent Technology (Beijing) Co., Ltd. 睿尔曼智能科技（北京）有限公司
Beijing · est. 2018
RealMan develops robot arms, integrated joint modules and robot platforms for integration and research. Its developer center separates arm and controller generations. Payload, power, sensing and software support must be checked for the exact model; the documented GEN72 payload is 2 kg.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.
Discuss this configurationRelated models
Considering RealMan RM65-6F Ultra-Lightweight Robot Arm? Share the quantity, configuration and destination so we can check fit, availability and quote requirements.
Request a quote— The Sourcebotics sourcing desk
