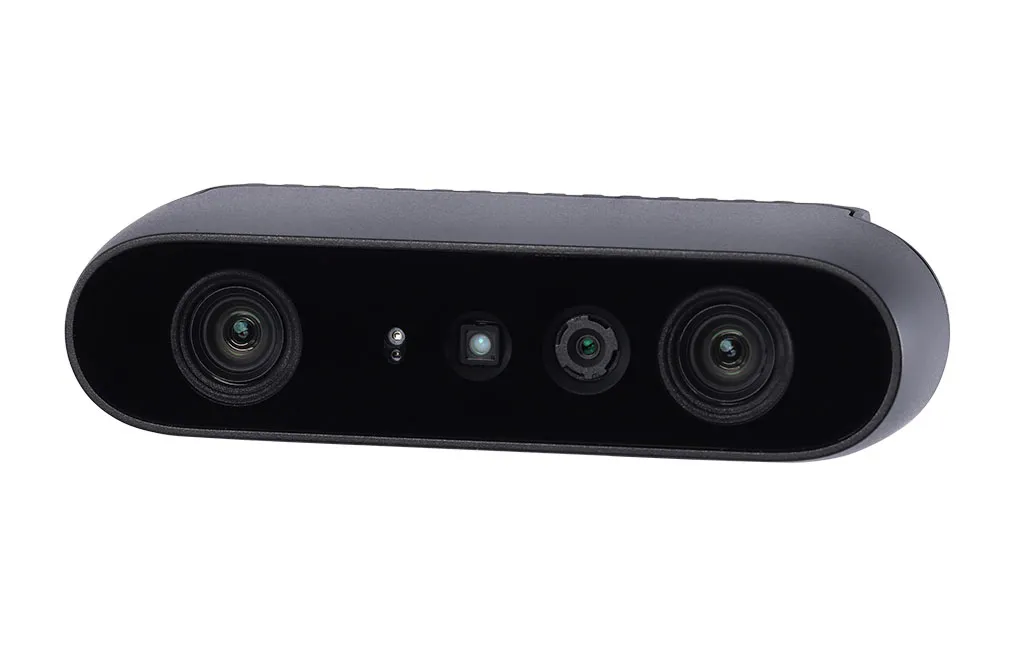

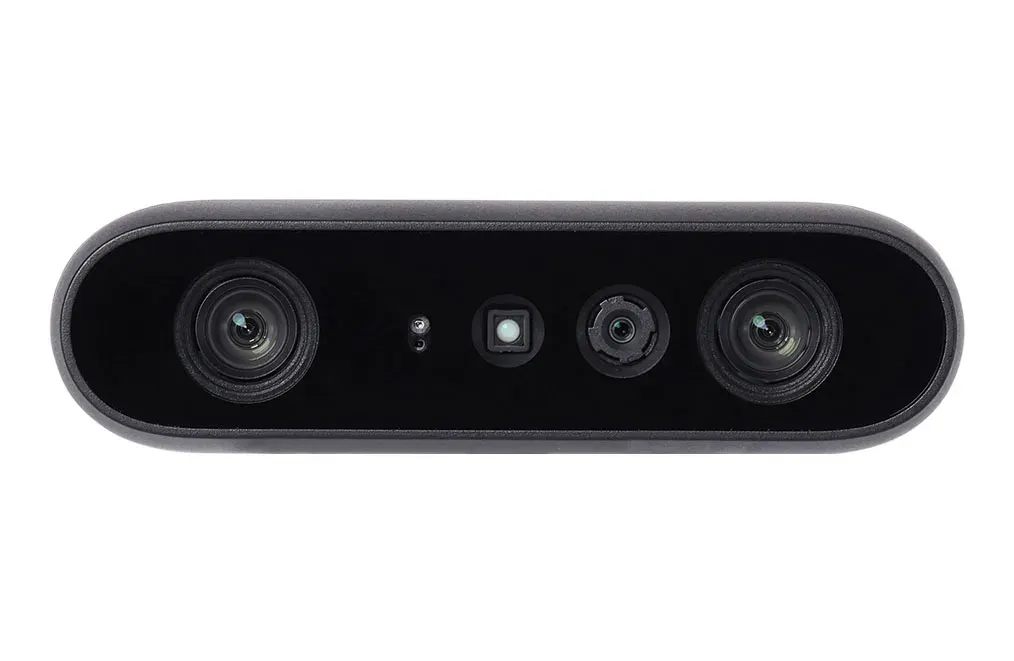

Orbbec Gemini 2 Active Stereo Depth Camera
Active stereo IR depth camera covering 0.15 to 10 m with 2 percent or better precision at 2 m. Streams 1280 by 800 depth at 30 fps plus 1080p RGB over USB 3.0 Type-C, consuming under 2.5 W at 98 g.
Price on request
TechnologyActive stereo IR
Depth Range0.15-10 m
Depth Accuracy<=2% @2 m
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Technology | Active stereo IR |
| Depth Range | 0.15-10 m |
| Depth Accuracy | <=2% @2 m |
| Resolution | up to 1280 x 800 (depth); 1920 x 1080 (RGB) |
| FPS | 30 fps |
| FoV | 91 x 66 deg (depth); 86 x 55 deg (RGB) |
| Interface | USB 3.0 Type-C |
| Weight | 98 g |
| Power | <2.5 W average |
| Dimensions | 90 x 25 x 30 mm |
| IMU | Built-in |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Supplier
Orbbec Inc. 奥比中光科技集团股份有限公司
Shenzhen, Guangdong · est. 2013 · 1,000+ employees
Orbbec, founded in 2013 in Shenzhen and listed on the STAR Market, designs its own depth ASICs and offers the industry's broadest 3D camera line-up. The Gemini stereo series, Femto time-of-flight series and structured light modules ship worldwide with full SDK, ROS and multi-camera synchronisation support.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Lead time10-20 days
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
