OrbbecGemini 335L
- Technology
- Active and passive stereo IR
- IP Rating
- IP65
- Interface
- USB 3.0 Type-C
Price on request

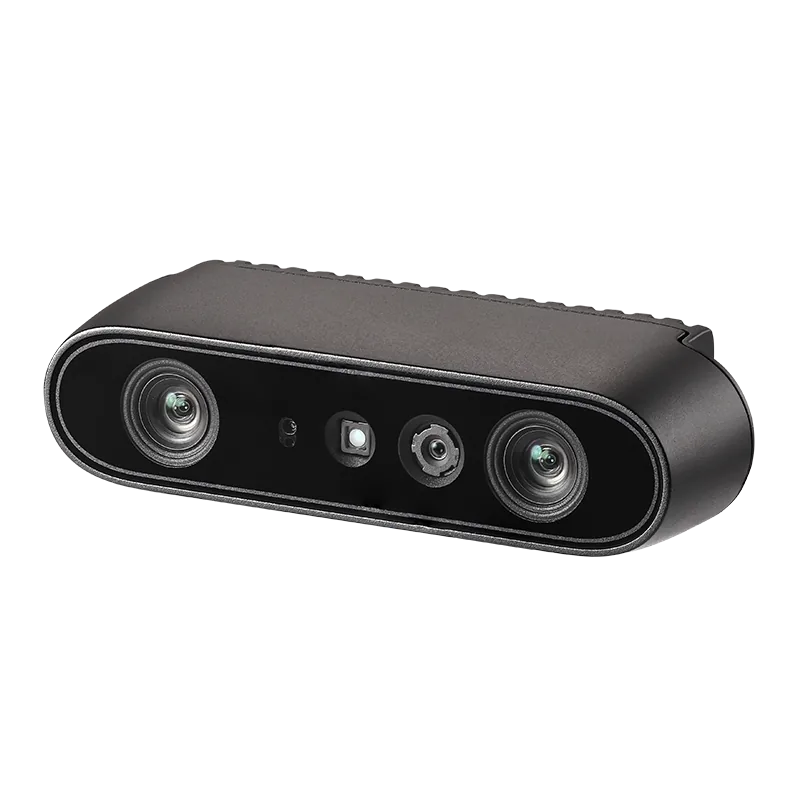

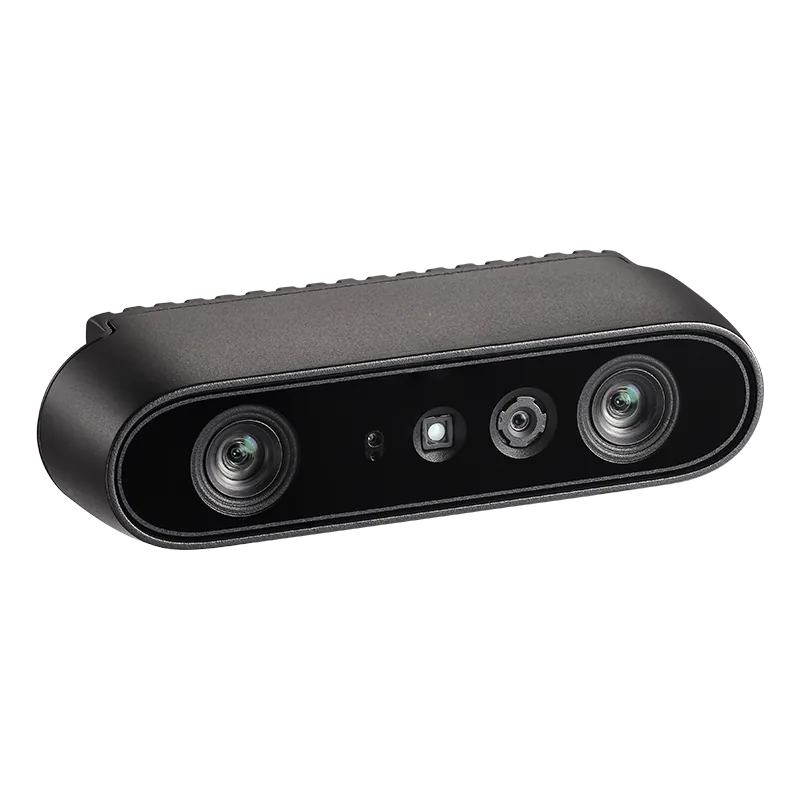

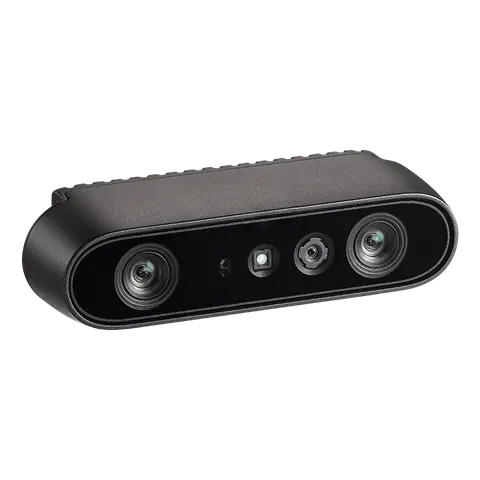

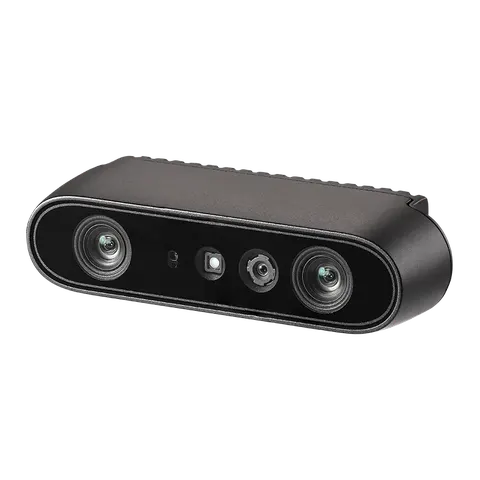

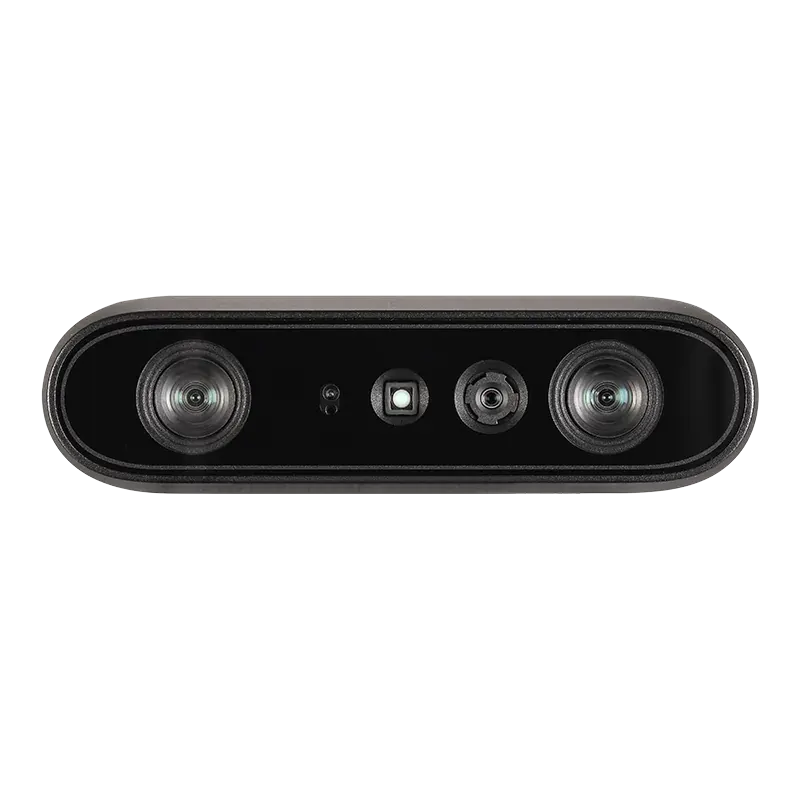

Orbbec Gemini 335 Active Stereo Vision Camera
Compact active and passive stereo depth camera covering 0.1 to 20 m with under 1.5 percent spatial precision at 2 m. Streams 1280 by 800 depth and 1080p RGB at 30 fps over USB 3.0 Type-C, weighs 97 g and is IP5X rated for robotics.
Price on request
TechnologyActive and passive stereo IR
Depth Range0.10-20 m+ (optimal 0.26-3 m)
Depth Accuracy<1.5% @2 m
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Technology | Active and passive stereo IR |
| Depth Range | 0.10-20 m+ (optimal 0.26-3 m) |
| Depth Accuracy | <1.5% @2 m |
| Resolution | up to 1280 x 800 (depth); 1920 x 1080 (RGB) |
| FPS | 30 fps |
| FoV | 90 x 65 deg (depth); 86 x 55 deg (RGB) |
| Interface | USB 3.0 Type-C |
| Weight | 97 g |
| IP Rating | IP5X |
| Dimensions | 90 x 25 x 30 mm |
| Processor | Orbbec ASIC MX6800 |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Supplier
Orbbec Inc. 奥比中光科技集团股份有限公司
Shenzhen, Guangdong · est. 2013 · 1,000+ employees
Orbbec, founded in 2013 in Shenzhen and listed on the STAR Market, designs its own depth ASICs and offers the industry's broadest 3D camera line-up. The Gemini stereo series, Femto time-of-flight series and structured light modules ship worldwide with full SDK, ROS and multi-camera synchronisation support.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Lead time10-20 days
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
