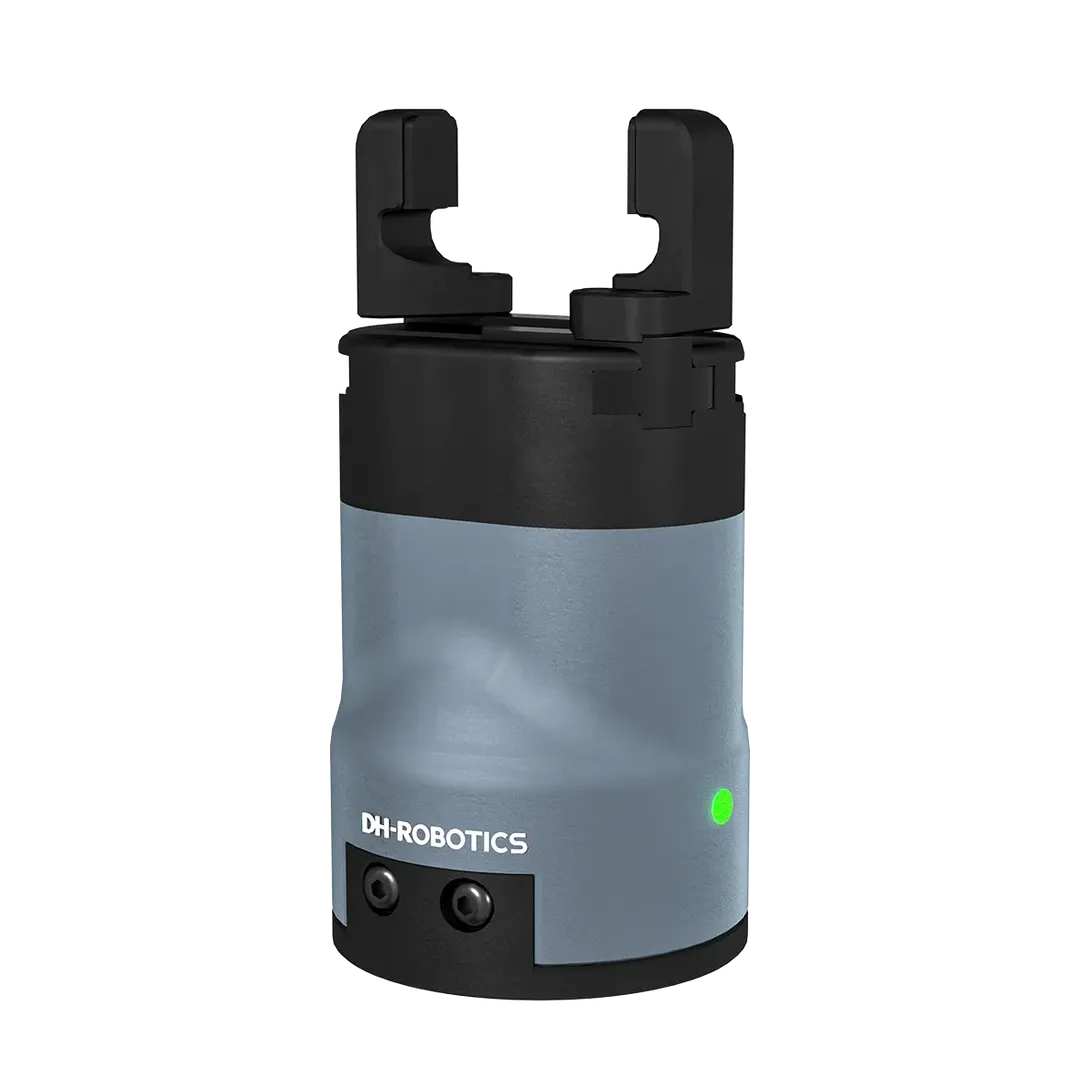

DH-Robotics PGC-50-35 Two-Finger Electric Gripper - Payload 1 kg

View image source ↗

DH-Robotics Technology Co., Ltd. · Shenzhen, Guangdong

DH-Robotics PGC-50-35 Collaborative Electric Gripper

Plug-and-play collaborative gripper with planetary reducer and rack-and-pinion drive, giving 15-50 N jaw force over 37 mm stroke at 0.5 kg. IP54 sealing and adapter kits for every major cobot brand speed deployment.

Price on request
Fingers2
Grip Force15-50 N per jaw
Stroke37 mm
Request a quote for this modelAsk a question on WhatsApp
Product documentationConfiguration & quotation

Technical specifications

Product documentation
MANUFACTURER-REPORTED SPECIFICATIONS
Fingers2
Grip Force15-50 N per jaw
Stroke37 mm
Payload1 kg
Weight0.5 kg
Repeatability+/-0.03 mm
CommunicationModbus RTU (RS485), Digital I/O; optional TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT
Voltage24 VDC
IP RatingIP54

Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.

Supplier

DH-Robotics Technology Co., Ltd. 深圳市大寰机器人科技有限公司
Shenzhen, Guangdong · est. 2016 · 100–500 employees

DH-Robotics is China's leading electric gripper brand, shipping plug-and-play end effectors for every major collaborative robot platform. Its PGE, PGEA, PGC, PGI, AG and RGI families cover 0.8 N to 300 N jaw force with Modbus RTU, EtherCAT and PROFINET options and IP67 variants.

View profile

Product documentation

Manufacturer and distributor references for model selection and technical review.

Configuration & quotation

Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.

Price range (USD)Price on request
MOQ1
Lead time10-25 days

Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
