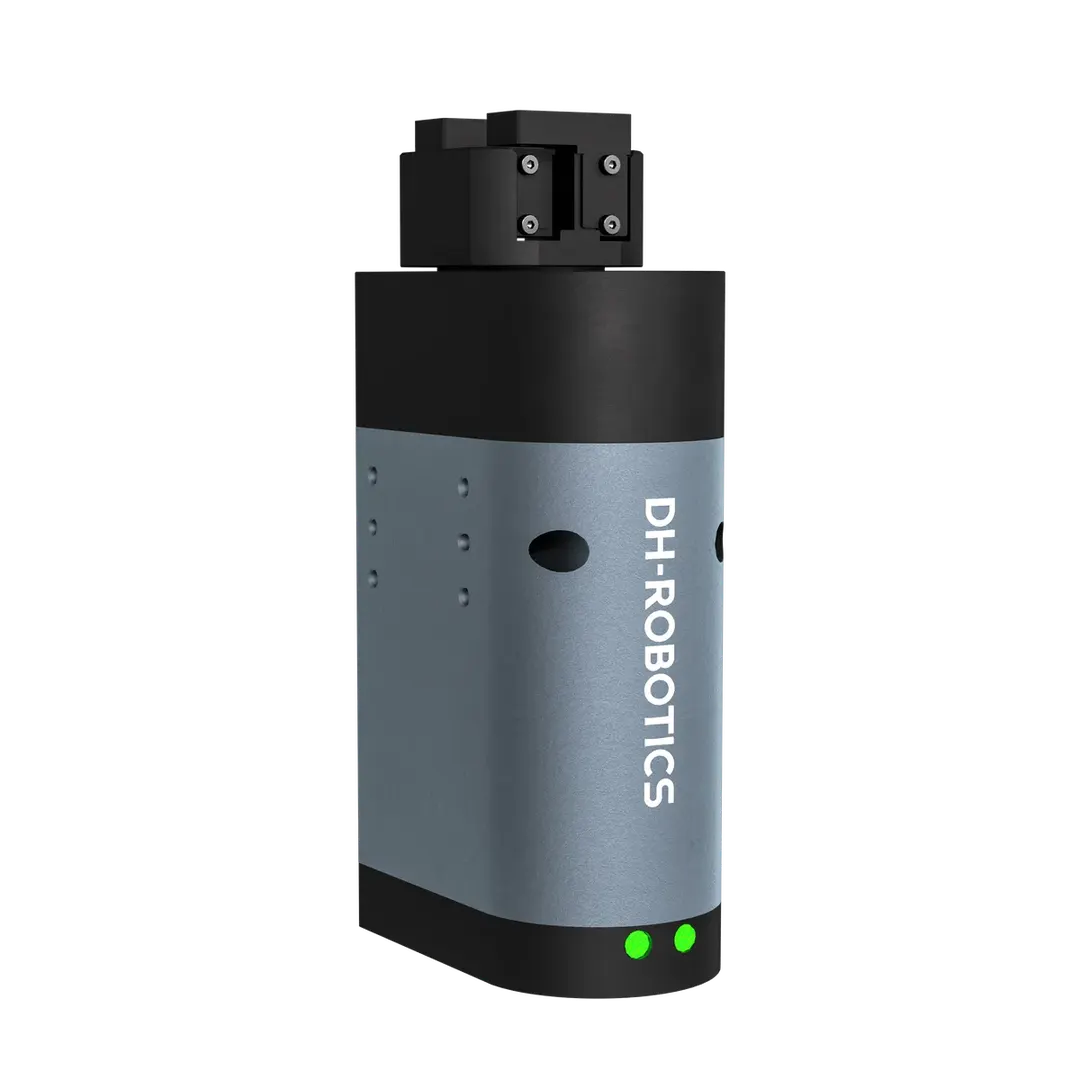

DH-Robotics RGI-100-14 Infinite-Rotation Electric Gripper
RGI-100-14 combines a two-jaw parallel grip with a rotary output: 30–100 N per jaw and 14 mm total stroke. Rotary output is rated 0.5 N·m, with 1.5 N·m peak; payload and angular-positioning conditions are detailed below.
Price on request
Gripper typeTwo-jaw grip-and-rotate
Grip force (per jaw)30–100 N
Total stroke14 mm
Choosing this model
Read the product documentationSourcebotics selection notes, based on the published documentation.
Application fit
- Compact tube or small-part grip-and-rotate stations needing 14 mm total opening travel and 30–100 N per-jaw force.
Integration planning
- Size the 24 V DC ±10% supply for the 4 A peak demand and check the delivered cable pinout, I/O polarity and hardware revision.
- Specify external protocol conversion and the robot-side plugin separately; a PC USB adapter does not make USB a native gripper port.
- Assess fingertip geometry, friction, center-of-mass offset, acceleration and the separate Fz/Mx/My/Mz limits before accepting a workpiece load.
Selection considerations
- Keep rated rotary torque (0.5 N·m), peak output (1.5 N·m), and external allowable moments separate.
- For reversing or precise angular seating, assess the documented geared backlash. Repeatability alone is not an absolute positioning specification.
- Obtain an allowable load-inertia and duty-cycle assessment for the complete fingers and workpiece; no inertia limit is inferred from the torque figure.
- The English webpage lists 1.28 kg for both gripper mass and recommended workpiece weight. The exact-model English leaflet and Chinese catalog distinguish 1.28 kg mass from the 1.5 kg recommended load; use the catalog's fingertip and friction conditions.
- The CN-2025.08 reference is 0.45 s opening and 0.25 s closing over full stroke; the English webpage retains 0.6 s for each direction. Confirm timing for the delivered revision and application.
Technical specifications
Product documentationMANUFACTURER SPECIFICATIONS — CN-2025.08
| Product type | Industrial rotary electric gripper |
| Finger / jaw count | 2 (mechanically coupled) |
| Controlled motion | Two controlled motions: coupled parallel gripping and rotary output; manufacturer describes dual servo systems |
| Grip force (per jaw) | 30–100 N |
| Total stroke | 14 mm |
| Recommended workpiece limit | 1.5 kg maximum recommended including fingertips; under pure-friction gripping (coefficient 0.2, safety factor 4); center-of-mass offset and motion must be assessed |
| Weight | 1.28 kg |
| Dimensions | 158 × 75.5 × 47 mm (CN-2025.08 configuration) |
| Position and rotation repeatability | Position ±0.02 mm; rotation ±0.05° repeatability. CN-2025.08 notes about 1–2° geared backlash; not absolute angular accuracy. |
| Full-stroke opening / closing | 0.45 s / 0.25 s (full-stroke opening / closing; catalog reference, not an application cycle guarantee) |
| Rated rotary output torque | 0.5 N·m |
| Peak rotary output torque | 1.5 N·m; allowable duration/duty requires confirmation |
| Rotation range | Continuous rotation; programmable grip and rotary motion |
| Maximum rotary speed | Up to 2160 °/s (catalog maximum; simultaneous rated torque at that speed is not established) |
| Rotary inertia | Not established in the reviewed exact-model tables; request rotor and allowable load inertia with acceleration/deceleration limits |
ELECTRICAL AND INTEGRATION CONFIGURATION
| Communication | Standard: Modbus RTU (RS485), Digital I/O (2 inputs, 2 outputs); optional via external converter or customization: TCP/IP, CAN 2.0A, PROFINET, EtherCAT |
| Voltage | 24 V DC ±10% |
| Rated / peak supply current | 1 A / 4 A |
| Ingress protection | IP40 |
| Recommended environment | 0–40 °C; relative humidity below 85% |
SEPARATE STRUCTURAL LOADING LIMITS
| Vertical static allowable load | Fz 150 N vertical static allowable load, using the catalog axis diagram; not a lifted-workpiece payload |
| Allowable external load moments | Mx 2.5 N·m; My 3 N·m; Mz 4 N·m, using the catalog axis diagram; allowable external load moments |
Manufacturer specifications for the listed model. Confirm options, operating conditions and integration requirements in your configuration-specific quotation.
Supplier
DH-Robotics 大寰机器人
Shenzhen · est. 2016
DH-Robotics develops electric grippers, dexterous hands and motion components. Its Shenzhen sourcing contact supports selection across parallel, adaptive and rotating designs. Specify the exact gripper, fingers, cable and controller interface; compatibility and protection ratings vary by configuration.
Downloads
DH gripper selection catalog — CN-2025.08 (Chinese)
PDF page 23: exact model, order options, static-load diagram and operating conditions. Large PDF; reference the delivered revision.
RGI operation manual — V3.1-250701 (Chinese)
Match the exact model, hardware revision and cable before integration; document link does not confirm installed firmware.
Official PC control software information
Configuration resource; applicability and plugin/OS support must be checked for the ordered model.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.
Discuss this configurationFAQ
Is this a dexterous robotic hand?
It is an industrial rotary electric gripper with two coupled fingers. It adds a separate rotary output to the gripping motion. Formal total and active joint counts are not established in the reviewed documents.
Is the recommended load an unconditional payload rating?
No. The 1.5 kg reference includes fingertips and assumes pure-friction gripping, coefficient 0.2 and safety factor 4. Fingertip geometry, center of mass, contact material and motion must be assessed. Fz and allowable Mx/My/Mz loads are separate structural limits.
Which interfaces and software should be specified?
Quote the native Modbus RTU/RS485 configuration and the required I/O polarity, hardware revision and cable. Other fieldbuses need the listed external converter or custom configuration. Request robot-specific plugins and a USB-to-RS485 adapter separately; the PC setup utility is not proof of an open SDK or tested integration.
Does ±0.05° mean absolute angular accuracy?
No. CN-2025.08 labels this repeatability and also notes about 1–2° geared backlash. Obtain an angular acceptance method and the permitted rotating inertia for the fingers and workpiece; rated and peak torque do not establish those limits.
