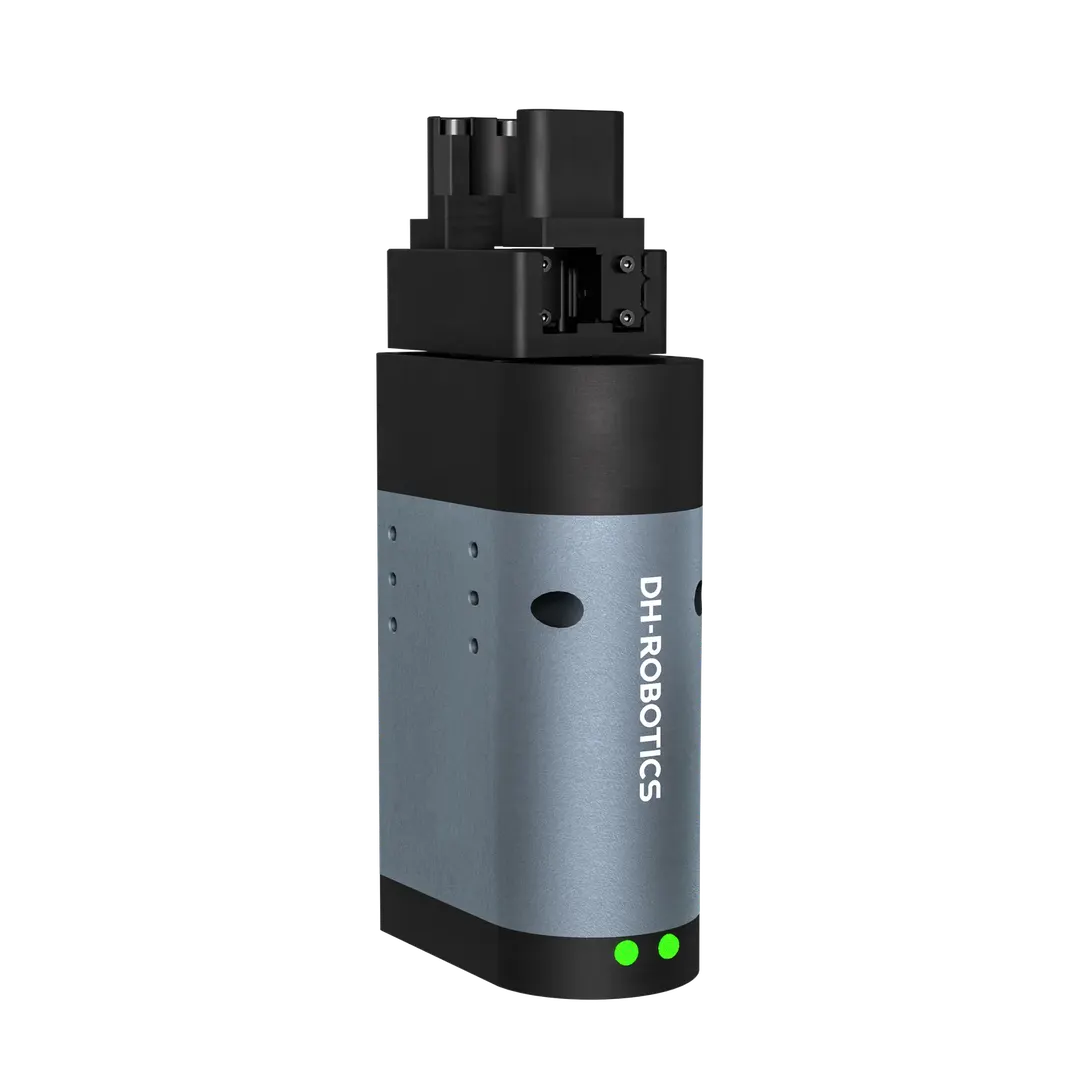

DH-Robotics RGI-100-22 Rotating Electric Gripper - Payload 1.4 kg

View image source ↗

DH-Robotics · Shenzhen

DH-Robotics RGI-100-22 Infinite-Rotation Electric Gripper

Two-in-one gripper and rotary axis with infinite rotation, 30-100 N per jaw clamping force, 22 mm stroke and 0.5 / 1.5 N.m rated/peak rotary torque at up to 2160 deg/s. Removes a robot wrist axis in insertion, screwing and orienting tasks.

Price on request
Fingers2
Grip Force30-100 N per jaw
Stroke22 mm
Request a quote for this modelAsk a question on WhatsApp
Product documentationConfiguration & quotationCompare hand configurations →

Technical specifications

Product documentation
MANUFACTURER-REPORTED SPECIFICATIONS
Fingers2
Grip Force30-100 N per jaw
Stroke22 mm
RotationInfinite (360 deg continuous)
Rotary Torque0.5 / 1.5 N.m
Max Rotation Speed2160 deg/s
Payload1.4 kg
Weight1.4 kg
Repeatability+/-0.02 mm position, +/-0.05 deg rotation
CommunicationModbus RTU (RS485), Digital I/O; optional TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT
Voltage24 VDC

Manufacturer specifications for the listed model. Confirm options, operating conditions and integration requirements in your configuration-specific quotation.

Supplier

DH-Robotics 大寰机器人
Shenzhen · est. 2016

DH-Robotics develops electric grippers, dexterous hands and motion components. Its Shenzhen sourcing contact supports selection across parallel, adaptive and rotating designs. Specify the exact gripper, fingers, cable and controller interface; compatibility and protection ratings vary by configuration.

View profile

Product documentation

Manufacturer and distributor references for model selection and technical review.

Configuration & quotation

Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.

Price range (USD)Price on request
MOQ1
Lead time10-25 days

Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.
