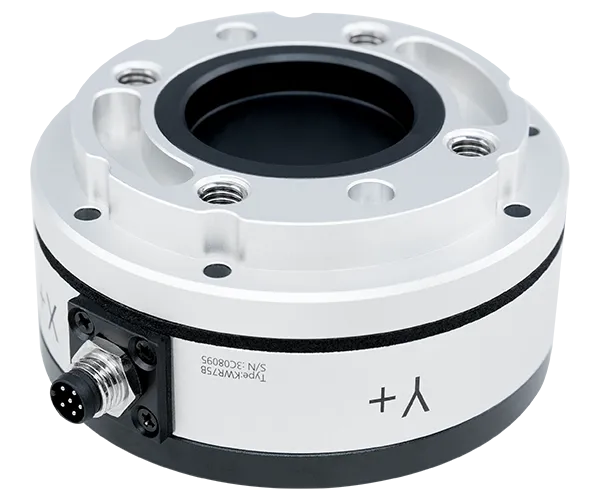

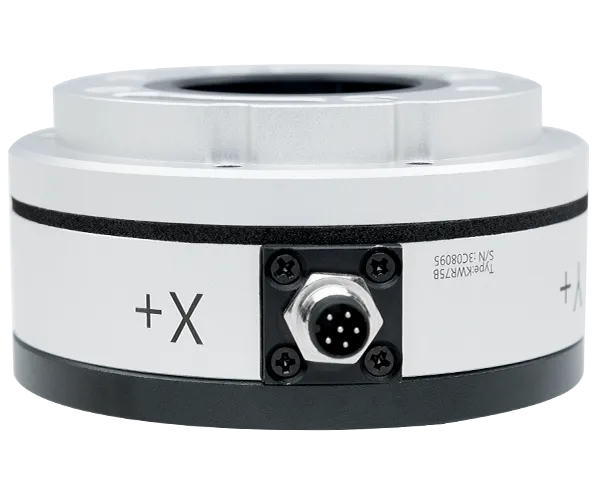

KUNWEI KWR75F Six-Axis Force/Torque Sensor
Balanced 100 N / 4 Nm six-axis force/torque sensor for small collaborative arms and dexterous manipulation research. Features 0.5 %FS accuracy, IP64 protection and a rich interface set including EtherCAT, CAN FD, RS485 and USB for rapid integration.
Price on request
Axes6
Accuracy0.5 %FS
Resolution0.03 %FS
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Axes | 6 |
| Accuracy | 0.5 %FS |
| Resolution | 0.03 %FS |
| Overload Capacity | 200-300 %FS |
| Sampling Rate | 1000 Hz |
| Interface | RS422/RS485/Modbus/CAN/CAN FD/TCP/UDP/EtherCAT/USB |
| Diameter | 75 mm |
| Height | 31.5-33.5 mm |
| IP Rating | IP64 |
| Operating Temp | -10 to 80 C |
| Fx/Fy Range | 100 N |
| Fz Range | 100 N |
| Mx/My Range | 4 Nm |
| Mz Range | 4 Nm |
| Material | Aluminium alloy |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Supplier
Changzhou Kunwei Sensing Technology Co., Ltd. 常州坤维传感科技有限公司
Changzhou, Jiangsu
KUNWEI is a Changzhou-based specialist in multi-axis force measurement with more than twenty years of force-sensing experience. Its KWR series six-axis force/torque sensors serve collaborative robots, humanoid robots and precision assembly lines, offering 0.5 %FS accuracy, 1 kHz sampling and EtherCAT, CAN FD and Ethernet interfaces for over 500 partners worldwide.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Lead time15-30 days
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
