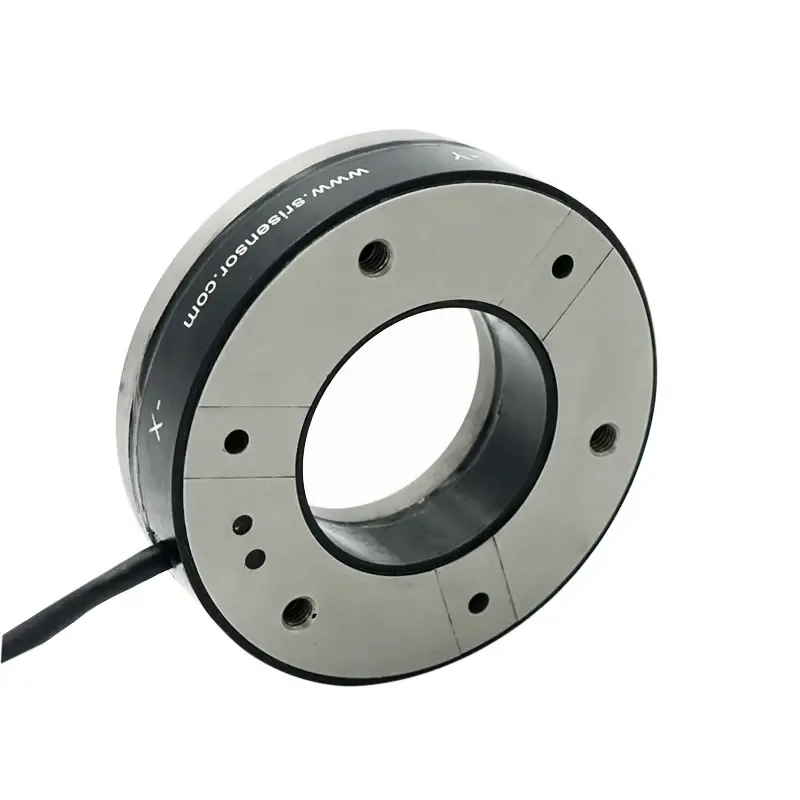

SRI M3705C Six-Axis Force/Torque Sensor
90 mm flanged six-axis force/torque sensor offering 200 N radial, 400 N axial and 14 Nm capacity. The larger bolt circle improves moment stiffness for medium-payload industrial arms performing grinding, press-fitting and force-controlled machine tending.
Price on request
Fx/Fy range200 N
Fz range400 N
Mx/My range14 N·m
MANUFACTURER-REPORTED SPECIFICATIONS
| Axes | 6 |
| IP Rating | IP60 (IP68 on P variants) |
| Outer Diameter | 90 mmReference ↗ |
| Fx/Fy range | 200 NReference ↗ |
| Fz range | 400 NReference ↗ |
| Mx/My range | 14 N·mReference ↗ |
| Mz range | 14 N·mReference ↗ |
| Overload capacity | 300 %FSReference ↗ |
| Crosstalk | 2.5 %FSReference ↗ |
| Nonlinearity | 0.5 %FSReference ↗ |
| Hysteresis | 0.5 %FSReference ↗ |
| Weight | 0.175 kgReference ↗ |
| Excitation voltage (max.) | 5 VReference ↗ |
| Operating temperature | -40 to +100 °CReference ↗ |
| Compensated temperature range | 10 to 70 °CReference ↗ |
| Resonant frequency (free air) | 2000 HzReference ↗ |
| Bridge resistance | 350 ΩReference ↗ |
| Output | Coupled strain-gauge bridges; 6×6 decoupling matrix suppliedReference ↗ |
Manufacturer specifications for the listed model. Confirm options, operating conditions and integration requirements in your configuration-specific quotation.
Supplier
Sunrise Instruments Co., Ltd. 宇立仪器有限公司
Nanning, Guangxi
SRI (Sunrise Instruments) is one of China's earliest multi-axis force/torque transducer makers, supplying more than one hundred catalogue models from 15 mm miniature units to 135 mm flanged sensors. Typical performance is 0.5 % non-linearity with 300 % overload, and IP68 underwater variants are available for demanding robotic and automotive test programmes.
Product documentation
Manufacturer and distributor references for model selection and technical review. Specification sources last reviewed: October 28, 2026.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Lead time20-40 days
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.
