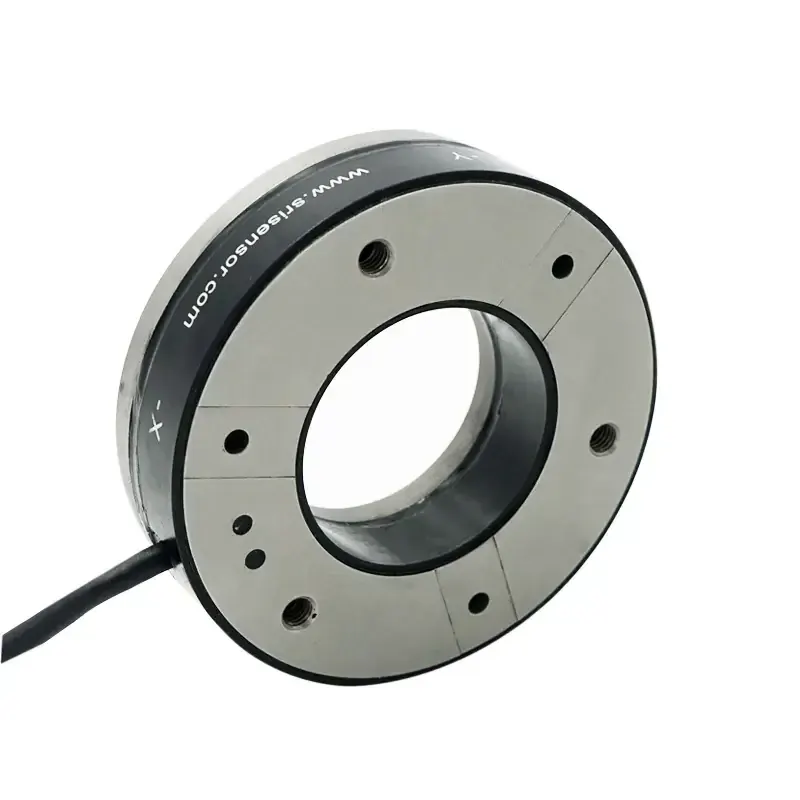

SRI M3706C Six-Axis Force/Torque Sensor
Large 135 mm six-axis force/torque sensor with 20 Nm moment capacity for heavy tooling and end-of-arm fixtures. Rated 200 N radial and 400 N axial, it keeps 0.5 % non-linearity and 300 % overload margin for structural and robotic test benches.
Price on request
Axes6
Nonlinearity0.5 %FS
Hysteresis0.5 %FS
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Axes | 6 |
| Nonlinearity | 0.5 %FS |
| Hysteresis | 0.5 %FS |
| Overload Capacity | 300 %FS |
| IP Rating | IP60 (IP68 on P variants) |
| Fx/Fy Range | 200 N |
| Fz Range | 400 N |
| Mx/My Range | 20 Nm |
| Mz Range | 20 Nm |
| Outer Diameter | 135 mm |
| Weight | 0.39 kg |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Supplier
Sunrise Instruments Co., Ltd. 宇立仪器有限公司
Nanning, Guangxi
SRI (Sunrise Instruments) is one of China's earliest multi-axis force/torque transducer makers, supplying more than one hundred catalogue models from 15 mm miniature units to 135 mm flanged sensors. Typical performance is 0.5 % non-linearity with 300 % overload, and IP68 underwater variants are available for demanding robotic and automotive test programmes.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Lead time20-40 days
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
