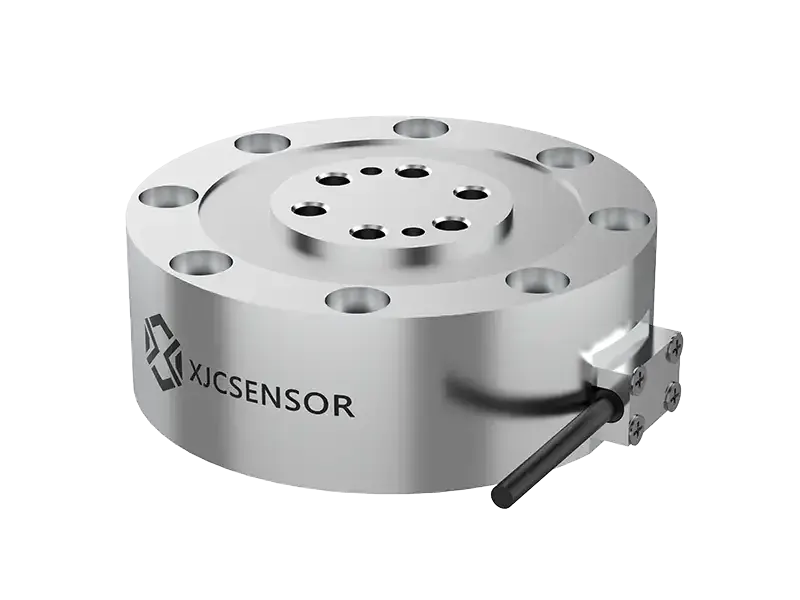

XJC X-6A-D70-H25 Six-Axis Force Sensor
High-capacity 70 mm six-axis force sensor rated 5000 N force and 200 Nm torque. Designed for heavy robotic assembly, press-fit monitoring and structural test benches where large loads must be resolved into all six force and moment components.
Price on request
Axes6
Rated Capacity5000 N / 200 Nm
Outer Diameter70 mm
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Axes | 6 |
| Rated Capacity | 5000 N / 200 Nm |
| Outer Diameter | 70 mm |
| Height | 25 mm |
| Material | Steel |
| Type | Resistance strain gauge with self-compensated gauges |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Supplier
Shanghai XJC Sensor Technology Co., Ltd. 上海鑫精诚传感技术有限公司
Shanghai · est. 2009 · 100–500 employees
XJCSENSOR has focused on force measurement since 2009 and now offers a nine-model X-6A six-axis force sensor range from 9.5 mm to 100 mm diameter, plus X-ST joint torque sensors. All units use self-compensated resistance strain gauge technology and are supplied with force-control solutions to robotics and battery manufacturers worldwide.
