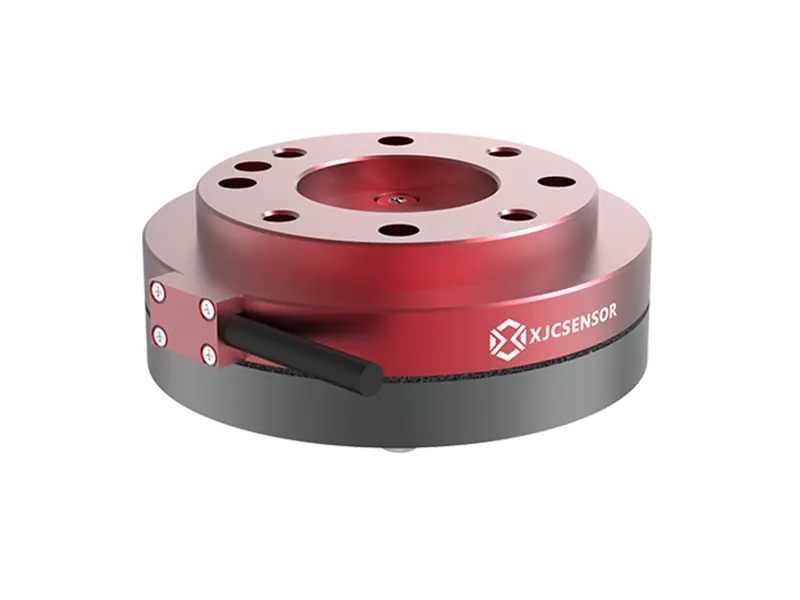

XJC X-6A-XD80-H28 Six-Axis Force Sensor
80 mm cross-beam six-axis force sensor available from 200 N to 1000 N. The optimised elastic body reduces cross-axis coupling, making it suitable for force-controlled grinding, robotic screwdriving and multi-axis load characterisation.
Price on request
Axes6
Rated Capacity200-1000 N
Outer Diameter80 mm
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Axes | 6 |
| Rated Capacity | 200-1000 N |
| Outer Diameter | 80 mm |
| Height | 28 mm |
| Material | Aluminium alloy |
| Type | Resistance strain gauge with self-compensated gauges |
Manufacturer specifications for the listed model. Confirm options, operating conditions and integration requirements in your configuration-specific quotation.
Supplier
Shanghai XJC Sensor Technology Co., Ltd. 上海鑫精诚传感技术有限公司
Shanghai · est. 2009 · 100–500 employees
XJCSENSOR has focused on force measurement since 2009 and now offers a nine-model X-6A six-axis force sensor range from 9.5 mm to 100 mm diameter, plus X-ST joint torque sensors. All units use self-compensated resistance strain gauge technology and are supplied with force-control solutions to robotics and battery manufacturers worldwide.
