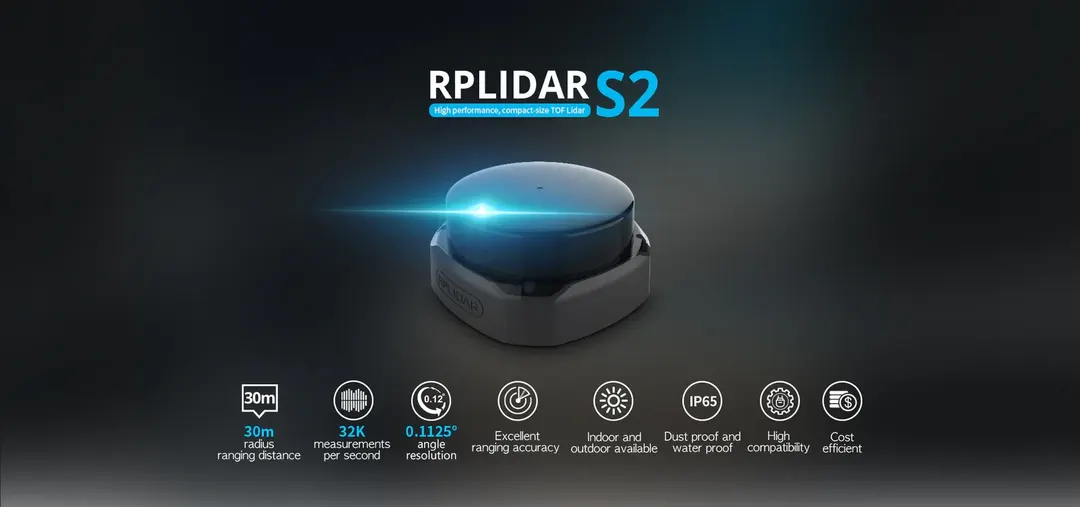

Time-of-flight 360-degree scanner sampling 32,000 points per second with 0.1125 degree resolution and 30 m range on 90 percent reflectance targets. IP65 sealing and Class 1 eye safety suit demanding indoor and semi-outdoor AMR deployments.
| Type | ToF 2D SLAM lidar |
| Range | 0.05-30 m (90% reflectivity); up to 50 m on S2P |
| Sample Rate | 32,000 samples/s |
| Scan Rate | 10 Hz typical |
| Angular Resolution | 0.1125 deg |
| IP Rating | IP65 |
| Laser Safety | Class 1 |
| Interface | Serial (S2/S2L/S2P) or Ethernet (S2E) |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Shanghai Slamtec Co., Ltd. develops RPLIDAR sensors, localization and navigation modules, software and robot platforms. Its 2013 founding is stated in the company history. Compare exact sensor revisions, development-kit contents and software licenses before procurement.
Manufacturer and distributor references for model selection and technical review.
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.
