EngineAI PM01 Small Humanoid / Education - DoF 23

EngineAI Robotics Technology Co., Ltd. · Shenzhen, Guangdong

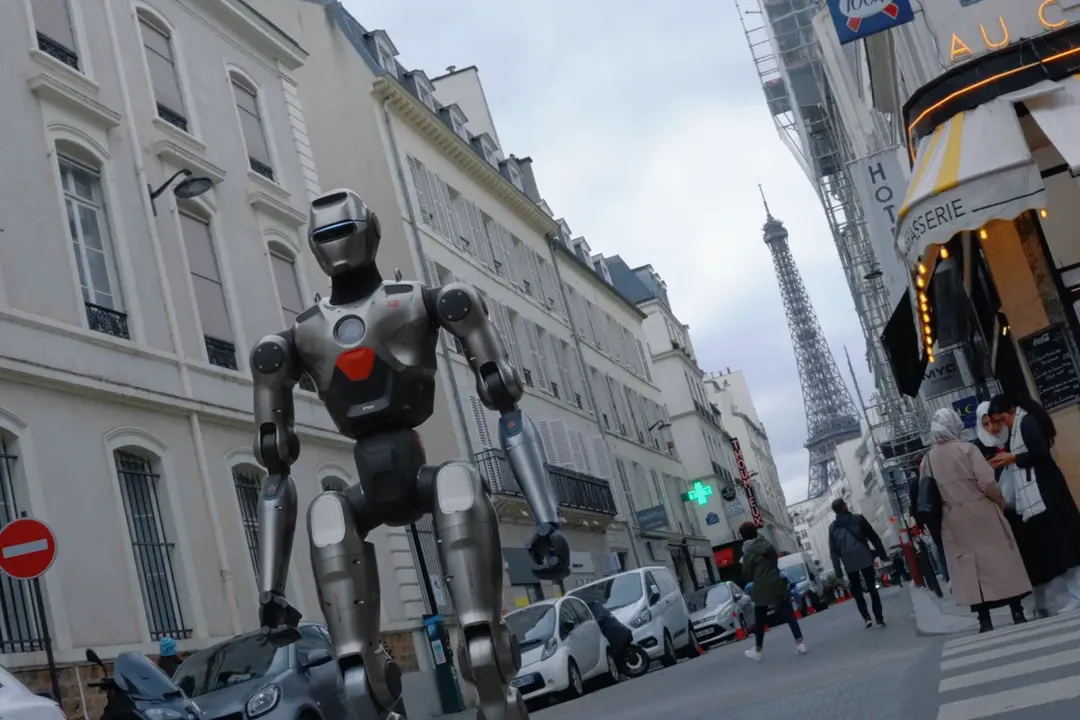

EngineAI PM01 Open Humanoid Robot

Name: EngineAI PM01 Open Humanoid Robot
Brand: EngineAI
SKU: PM01
Price: 26000 USD

Lightweight 138 cm, 42 kg open humanoid with 23 degrees of freedom, over 300 degrees of waist rotation and 2 m/s walking. Q90H motors deliver 145 N·m at an industry-leading 130 N·m/kg peak torque density, with a two-hour 10000 mAh pack.

From $26,000

Height1400 mm (1388 x 490 x 220 mm)

Weightabout 42 kg

DoF23

Request a quote for this model Ask a question on WhatsApp

Product documentation Configuration & quotation Compare research humanoids →

Technical specifications

Product documentation

MANUFACTURER-REPORTED SPECIFICATIONS

Height	1400 mm (1388 x 490 x 220 mm)
Weight	about 42 kg
DoF	23
Max Speed	over 2 m/s
Battery	10000 mAh smart battery
Runtime	nearly 2 h
Charging Time	nearly 2 h
Peak Joint Torque	145 N·m (Q90H motor, 130 N·m/kg density)
Compute	4-core CPU

Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.

Supplier

EngineAI Robotics Technology Co., Ltd. 众擎机器人

Shenzhen, Guangdong · est. 2023

EngineAI develops humanoid platforms including PM01, SE01 and T800. Hardware, computing modules and developer access vary by model and edition. Compare the exact configuration and included software resources when choosing a platform for research or integration.

View profile

Downloads

Manufacturer datasheet

External source

Product documentation

Manufacturer and distributor references for model selection and technical review.

Configuration & quotation

Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.

Price range (USD)From $26,000

MOQ1

Lead time30-60 days

Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.
