LimX TRON 1 Multi-modal Bipedal Robot

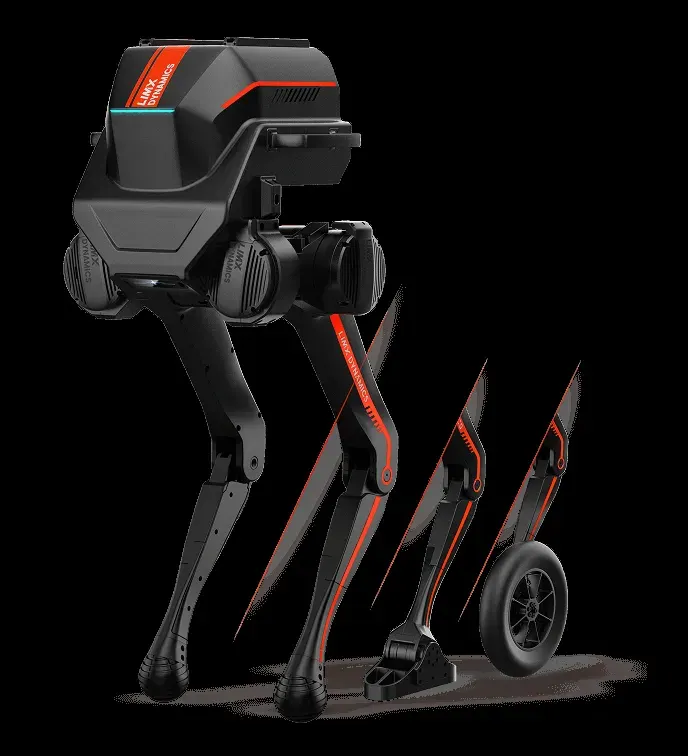

Widely adopted bipedal research platform: 845 mm, 20 kg or less, three swappable foot modes, up to 10 kg payload and 3 m/s in wheeled mode. Joints deliver 60 N·m peak, and a 12th-gen Intel i3 with 16 GB runs user code.
$15,000–$20,000
Height845 mm (392 x 420 mm footprint)
Weight20 kg or less
Payload10 kg or less
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Height | 845 mm (392 x 420 mm footprint) |
| Weight | 20 kg or less |
| Payload | 10 kg or less |
| Max Speed | up to 3 m/s wheeled mode; under 1 m/s point-foot and sole modes |
| Battery | ternary lithium 4.5 Ah, 46.8 V |
| Runtime | 2 h or less |
| Charging Time | 1.5 h full |
| Peak Joint Torque | 60 N·m peak (30 N·m rated), 15 rad/s |
| Degrees of Protection | operating temperature -5 to 40 C |
| Compute | 12th Gen Intel i3, 16 GB RAM, 512 GB storage |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Supplier
LimX Dynamics Co., Ltd. 深圳逐际动力科技有限公司
Shenzhen, Guangdong · est. 2022 · 100–500 employees
LimX Dynamics is a Shenzhen developer of general-purpose legged robots founded in 2022. Its TRON 1 multi-modal biped is a widely adopted academic research platform, while the full-size LimX Oli humanoid offers thirty-one to forty-three active degrees of freedom, quick-swap batteries and configurable NVIDIA Orin compute for embodied AI deployment.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)$15,000–$20,000
MOQ1
Lead time30-60 days
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
