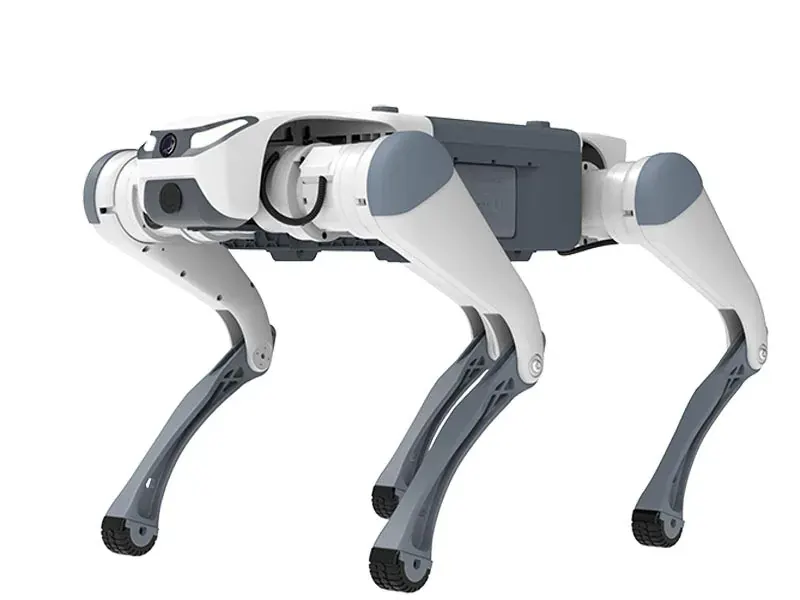

Twelve to 13.5 kg research quadruped with 50 percent higher joint torque than its predecessor, 40 degree slope capability and 18 cm stair climbing. Ships with motion-control SDK, perception APIs and sample code for rapid algorithm development.
| Dimensions | 610 x 370 x 406-496 mm (standing) |
| Weight | 12-13.5 kg (with battery) |
| DoF | 12 |
| Payload | Walking load 2.5-5 kg |
| Runtime | 1.5-2 h |
| Range | 2.7-5 km per charge |
| Climbing Ability | 40 deg slope; 18 cm stairs |
| Interfaces | USB 3.0, HDMI, dual Ethernet, 24 V / 12 V / 5 V (advanced configurations) |
| Sensing | Front/rear obstacle stop, visual following; optional forward obstacle avoidance and auto navigation |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
DEEP Robotics develops industrial and research quadrupeds, wheel-legged robots, humanoids and integrated joint modules. Its portfolio includes X30, Lite3 and LYNX platforms. Inspection and integration requirements depend on the exact model, payload, sensors, site and software configuration.
Manufacturer and distributor references for model selection and technical review.
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.
Discuss this configurationConsidering DEEP Robotics Lite3 Research Quadruped Robot? Share the quantity, configuration and destination so we can check fit, availability and quote requirements.
Request a quote— The Sourcebotics sourcing desk
