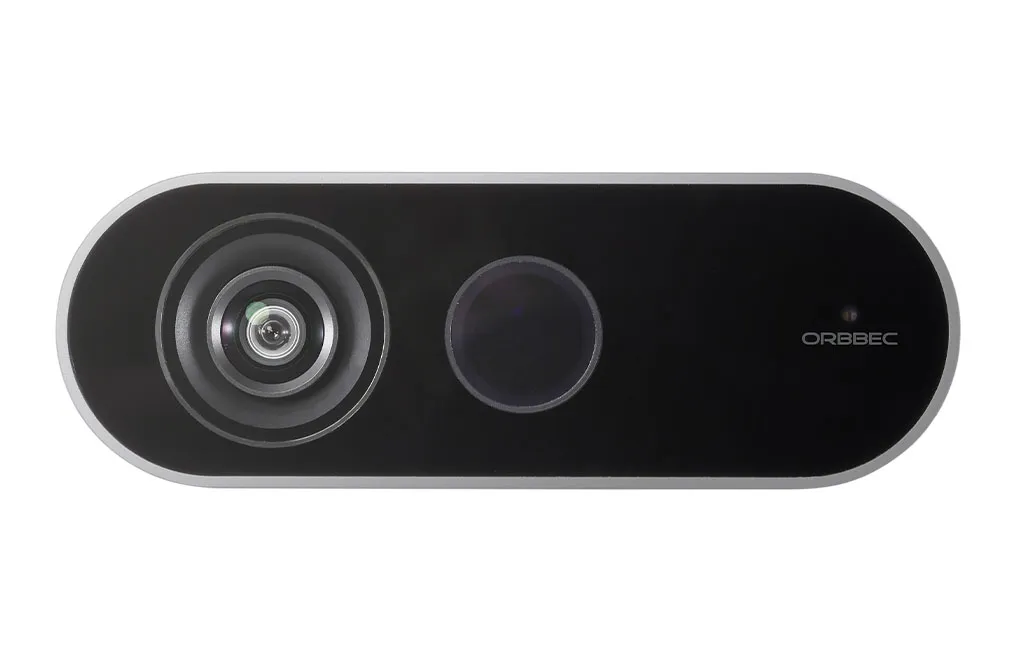

Orbbec Femto Mega Edge-Compute ToF Depth Camera
Time-of-flight depth camera with an on-board NVIDIA Jetson Nano for in-camera depth processing, 0.25 to 5.46 m range and 4K RGB at 25 fps. Supports USB 3.0 Type-C or Ethernet with PoE+ power, drawing under 13 W at 560 g.
Price on request
TechnologyTime of Flight (850 nm)
Depth Range0.25-5.46 m (mode dependent)
Depth Accuracy<11 mm + 0.1% of distance; precision <=17 mm
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Technology | Time of Flight (850 nm) |
| Depth Range | 0.25-5.46 m (mode dependent) |
| Depth Accuracy | <11 mm + 0.1% of distance; precision <=17 mm |
| Resolution | 1024 x 1024 @15 fps (WFOV); 640 x 576 @30 fps (NFOV); RGB 3840 x 2160 @25 fps |
| FPS | 15-30 fps |
| FoV | 120 x 120 deg (WFOV); 75 x 65 deg (NFOV) |
| Interface | USB 3.0 Type-C / Ethernet (PoE+) |
| Weight | 560 g |
| Power | <13 W average |
| Dimensions | 115 x 40 x 145 mm |
| Compute | NVIDIA Jetson Nano |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Supplier
Orbbec Inc. 奥比中光科技集团股份有限公司
Shenzhen, Guangdong · est. 2013 · 1,000+ employees
Orbbec, founded in 2013 in Shenzhen and listed on the STAR Market, designs its own depth ASICs and offers the industry's broadest 3D camera line-up. The Gemini stereo series, Femto time-of-flight series and structured light modules ship worldwide with full SDK, ROS and multi-camera synchronisation support.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Lead time10-20 days
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
