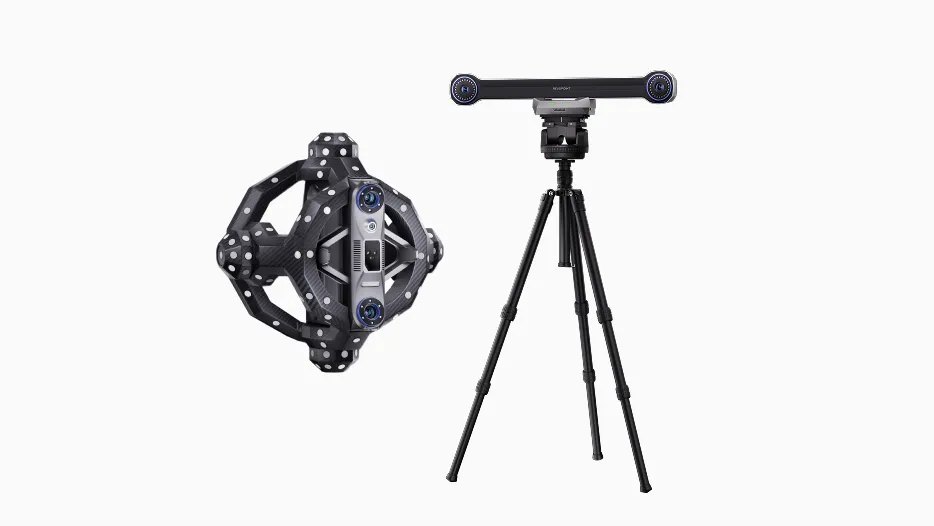

Trackit SR combines a blue-laser handheld scanner with a separate optical tracker. Its three laser modes support tracked marker-free scanning; standalone scanner operation uses markers. Bundle and software options should be specified.
Sourcebotics selection notes, based on the published documentation.
| Technology | Blue-laser 3D scanning with optical trackingReference ↗ |
| Laser modes | 30 blue cross laser lines; 17 blue parallel lines; 1 blue single lineReference ↗ |
| Accuracy | Single-frame 0.02 mm; tracking-system volumetric 0.025 mm + 0.04 mm × L(m), under manufacturer laboratory conditionsReference ↗ |
| Point spacing | Minimum fused point distance 0.05 mm; not an accuracy valueReference ↗ |
| Maximum point rate | Up to 2,000,000 points/s (manufacturer maximum)Reference ↗ |
| Working distance | Scanner: cross/single 200–400 mm, parallel 250–500 mm; tracker: 800–2500 mmReference ↗ |
| Weight | Scanner 1.0 kg + tracker 1.5 kg (2.5 kg combined; accessories excluded)Reference ↗ |
| Dimensions | Scanner 250 × 250 × 177 mm; tracker 441 × 111 × 103 mmReference ↗ |
| Communication | Wi-Fi 6; wired connections follow the V2.0 wiring diagramReference ↗ |
| Operating environment | 0–30 °C; manufacturer recommends 20–25 °C for accuracyReference ↗ |
| Battery reference | Scanner battery up to 2.5 h; not whole-system enduranceReference ↗ |
| Software | Revo Track: Windows/macOS; Trackit SR Mac support added in V5.7.10 (2026-09-08). Match host architecture and release.Reference ↗ |
Manufacturer specifications for the listed model. Confirm options, operating conditions and integration requirements in your configuration-specific quotation.
Chishine Optoelectronics, trading internationally as Revopoint, is a Xi'an structured light 3D imaging company. Its MetroX and MetroY industrial scanners, POP and INSPIRE portable units, MIRACO all-in-one devices and Trackit optical tracking systems serve reverse engineering, 3D printing, healthcare, digital entertainment and design markets worldwide.
Manufacturer and distributor references for model selection and technical review.
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.
Discuss this configurationThe tracked workflow uses a separate optical tracker. Standalone scanner mode uses markers, while multi-station work requires shared reference points. Include the correct system and calibration accessories in the quote.
No. The first is a single-frame accuracy reference; the second is point spacing. The tracking system has a length-dependent volumetric formula, and the manufacturer qualifies accuracy by laboratory conditions.
Confirm the bundle and region. The official page lists Revo Track for scanning, a one-year Revo Measure license in CMM Edition, and separately sold Revo Design and TCP remote control. Mac support for Trackit SR was added in Revo Track V5.7.10; confirm the exact host build.
