Inspire Robots EG2-4C2 Two-Finger Electric Gripper - Weight 231 g

View image source ↗

Beijing Inspire Robots Technology Co., Ltd. · Beijing

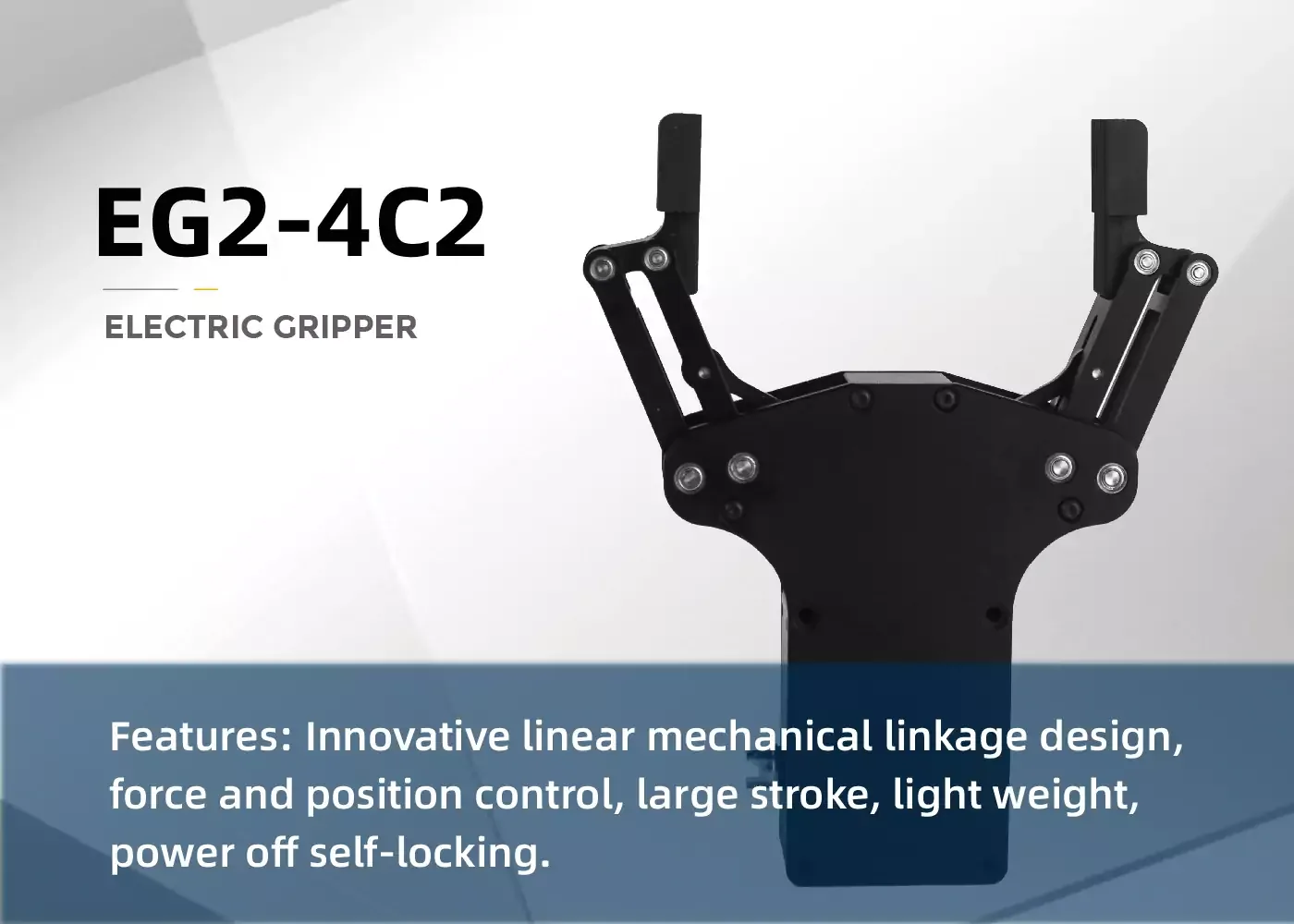

Inspire Robots EG2-4C2 Electric Parallel Gripper

Higher-force version of the EG2 platform delivering 0-20 N programmable jaw force over a 70 mm stroke at 231 g. Integrated controller, power-off self-locking and RS485 force and position control make it a compact cobot end effector.

Price on request
Fingers2
Grip Force0-20 N
Stroke70 mm
Request a quote for this modelAsk a question on WhatsApp
Product documentationConfiguration & quotation

Technical specifications

Product documentation
MANUFACTURER-REPORTED SPECIFICATIONS
Fingers2
Grip Force0-20 N
Stroke70 mm
Speed70 mm/s
Weight231 g
Repeatability+/-0.50 mm
VoltageDC 24 V +/-10%
CommunicationRS485

Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.

Supplier

Beijing Inspire Robots Technology Co., Ltd. 北京因时机器人科技有限公司
Beijing · est. 2016 · 100–500 employees

Inspire Robots is a pioneer in micro servo motion control, offering anthropomorphic five-finger dexterous hands with integrated force sensing, miniature servo electric cylinders from 10 to 50 mm stroke, and compact electric grippers. Products ship globally to humanoid robot, prosthetics and laboratory automation customers.

View profile

Downloads

Manufacturer datasheet
External source

Product documentation

Manufacturer and distributor references for model selection and technical review.

Configuration & quotation

Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.

Price range (USD)Price on request
MOQ1
Lead time15-30 days

Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
