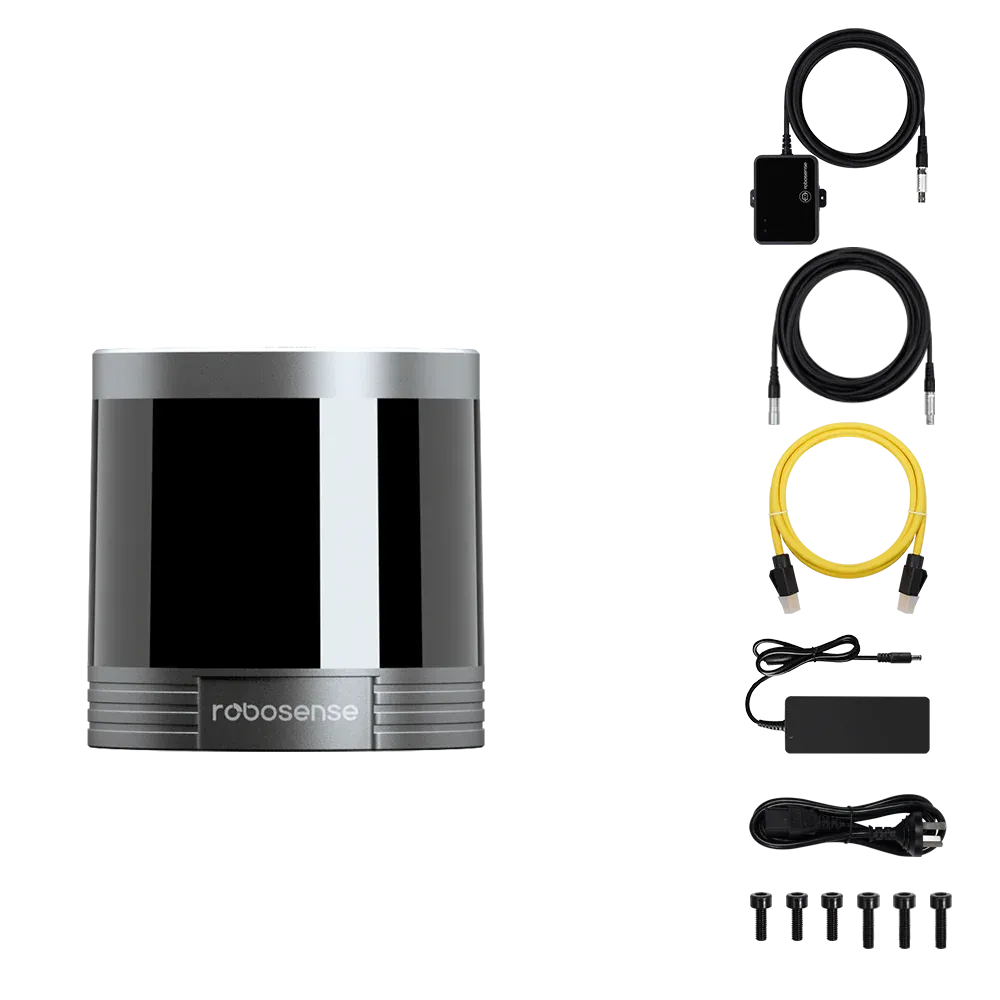

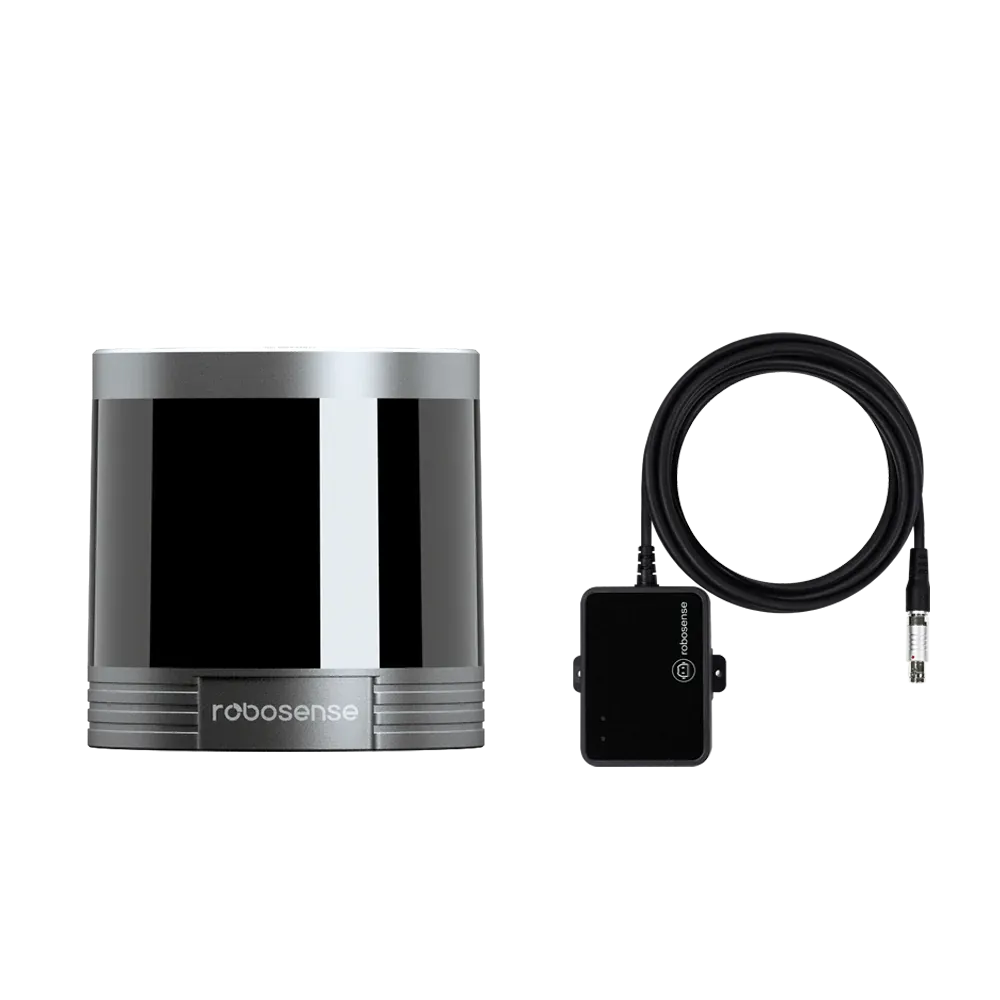

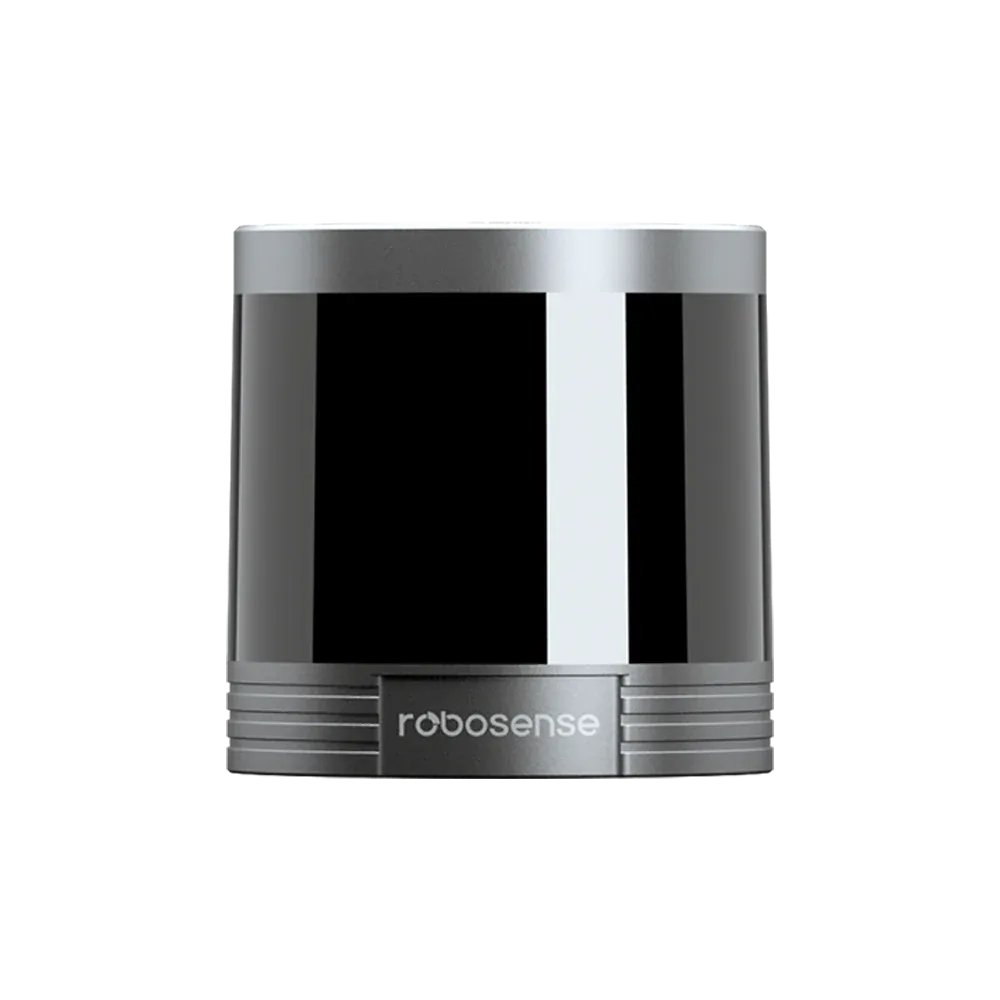

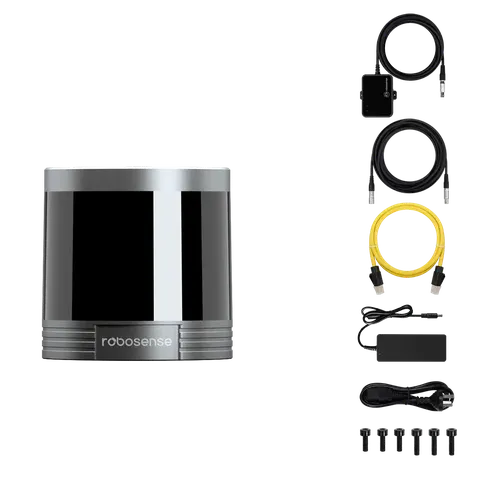

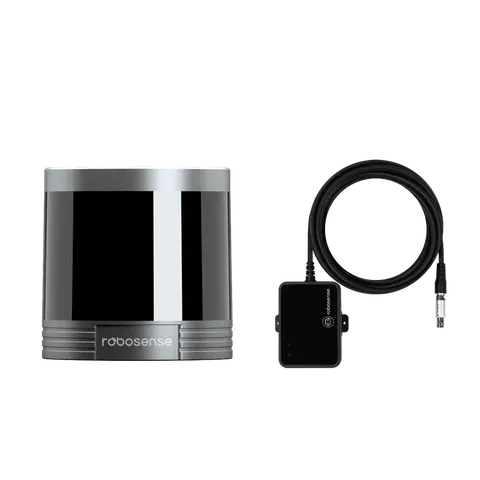

RoboSense RS-Helios-16 Mechanical 3D LiDAR
Sixteen-beam 360-degree lidar reaching 150 m, or 110 m against a 10 percent NIST target, with 1 cm typical precision. Outputs up to 576,000 points per second in dual return, sealed to IP67 and IP6K9K and rated from minus 40 degrees Celsius.
Price on request
TypeMechanical 360-degree lidar
Channels16
Range150 m (110 m @10% NIST)
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Type | Mechanical 360-degree lidar |
| Channels | 16 |
| Range | 150 m (110 m @10% NIST) |
| Range Accuracy | 1 cm typical |
| FoV (H/V) | 360 x 30 deg (-15 to +15) |
| Point Rate | 288,000 pts/s single / 576,000 pts/s dual |
| Frame Rate | 5/10/20 Hz |
| Wavelength | 905 nm |
| Power | 11 W |
| IP Rating | IP67, IP6K9K |
| Weight | 1000 g +/-50 g |
| Interface | 100Base-T1 Ethernet |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Supplier
RoboSense Technology Co., Ltd. 深圳市速腾聚创科技有限公司
Shenzhen, Guangdong · est. 2014 · 1,000+ employees
RoboSense, founded in 2014 in Shenzhen and listed in Hong Kong, designs lidar hardware together with in-house SoC chips such as M-Core. Product families include the Helios mechanical series for robotics and mapping, the MX and M-platform automotive scanners, and the fully solid-state E1 blind-spot sensor.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
