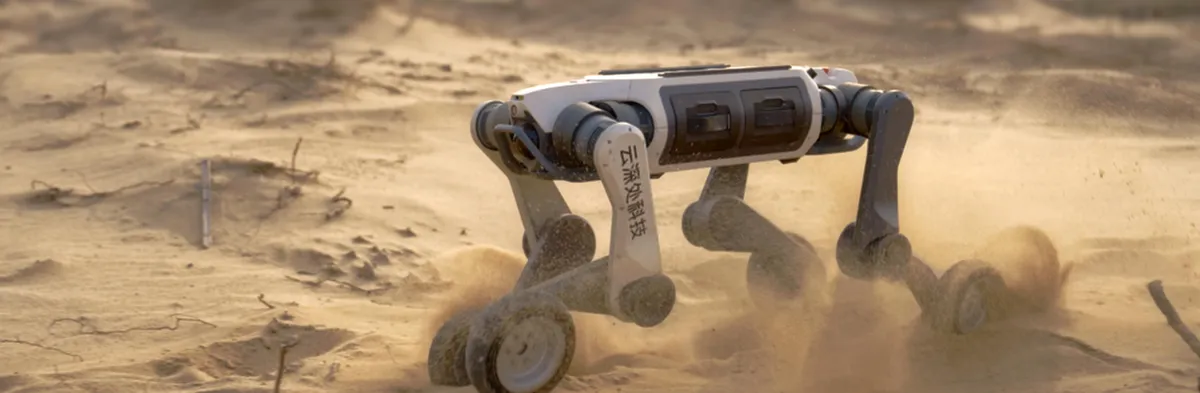

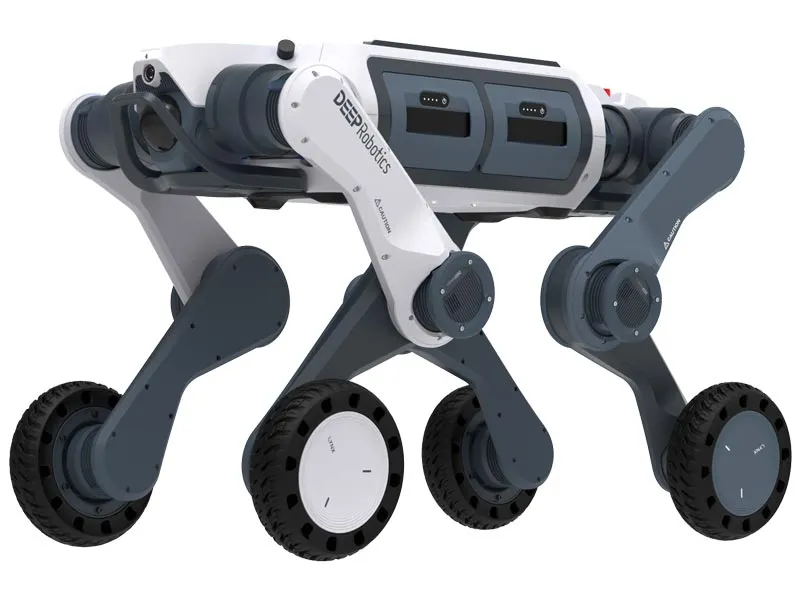

Industrial wheel-legged robot weighing 35 kg with 15 kg standard payload, 50 kg maximum load and 80 cm single-step obstacle clearance. IP66 sealing, dual 96-line LiDAR and hot-swap batteries suit rugged all-terrain inspection.
| Dimensions | 820 x 430 x 570 mm (standing) |
| Weight | 35 kg (with battery) |
| Payload | 15 kg standard; 50 kg maximum |
| Max Speed | 5 m/s (lab); 2 m/s (operating) |
| Runtime | 3 h / 15 km unloaded; 2.5 h / 12 km with 15 kg load |
| Charging Time | 1.5 h (single battery) |
| Climbing Ability | 45 deg slope; 25 cm continuous stairs |
| Obstacle Crossing | 80 cm single step |
| Degrees of Protection | IP66 |
| Operating Temp | -20 to 55 degC |
| Compute | Dual octa-core 64-bit industrial processors, 16 GB + 128 GB each |
| Sensing | Dual 96-line LiDAR (360 x 90 deg FoV), dual wide-angle cameras, bidirectional lighting |
Manufacturer specifications for the listed model. Confirm options, operating conditions and integration requirements in your configuration-specific quotation.
DEEP Robotics develops industrial and research quadrupeds, wheel-legged robots, humanoids and integrated joint modules. Its portfolio includes X30, Lite3 and LYNX platforms. Inspection and integration requirements depend on the exact model, payload, sensors, site and software configuration.
