Inspire RobotsRH56DFTP (tactile series)
- Controlled DOF
- 6
- Moving joints
- 12
- Fingertip repeatability
- ±0.2 mm
Price on request

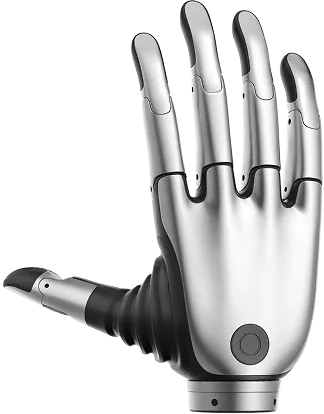

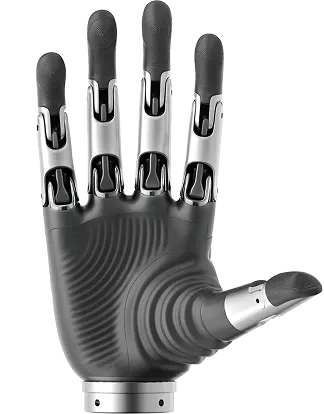

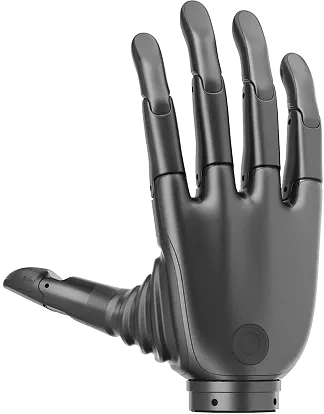

BrainCo Revo2 TOUCH Bionic Dexterous Hand
Tactile version of the Revo 2 hand, combining eleven degrees of freedom, 383 g mass and 50 N fist grip with integrated touch sensing. Python and C SDKs on Linux, Windows and ROS support closed-loop force manipulation research.
Price on request
DoF11
Active DoF6
Fingers5
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| DoF | 11 |
| Active DoF | 6 |
| Fingers | 5 |
| Grip Force | >=50 N fist, >=15 N pinch |
| Payload | >=20 kg |
| Weight | 383 g |
| Height | 160 mm |
| Tactile Sensing | Yes - integrated tactile sensing |
| Communication | RS485 / CAN FD / EtherCAT |
| Repeatability | 0.1 deg control precision |
| Voltage | 12-64 V (PRO/TOUCH) |
| Closing Time | <=0.65 s |
| Noise | <=50 dB @0.5 m |
| Operating Temp | -10 to 40 C |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Supplier
Hangzhou BrainCo Technology Co., Ltd. 杭州强脑科技有限公司
Hangzhou, Zhejiang · est. 2015 · 500–1,000 employees
BrainCo grew out of a Harvard innovation lab and is a leading brain-machine interface and bionic limb company. Its Revo dexterous hands transfer prosthetics-grade tendon actuation to humanoid robots, offering 11 degrees of freedom, 383 g mass and grip force above 50 N.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Lead time15-30 days
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
Discuss this configurationRelated models
UnitreeDex5-1
- Degrees of freedom
- 20 total; 16 active
- Hand mass
- 1100 g
- Fingertip force
- 10 N
Price on request
Considering BrainCo Revo2 TOUCH Bionic Dexterous Hand? Share the quantity, configuration and destination so we can check fit, availability and quote requirements.
Request a quote— The Sourcebotics sourcing desk
