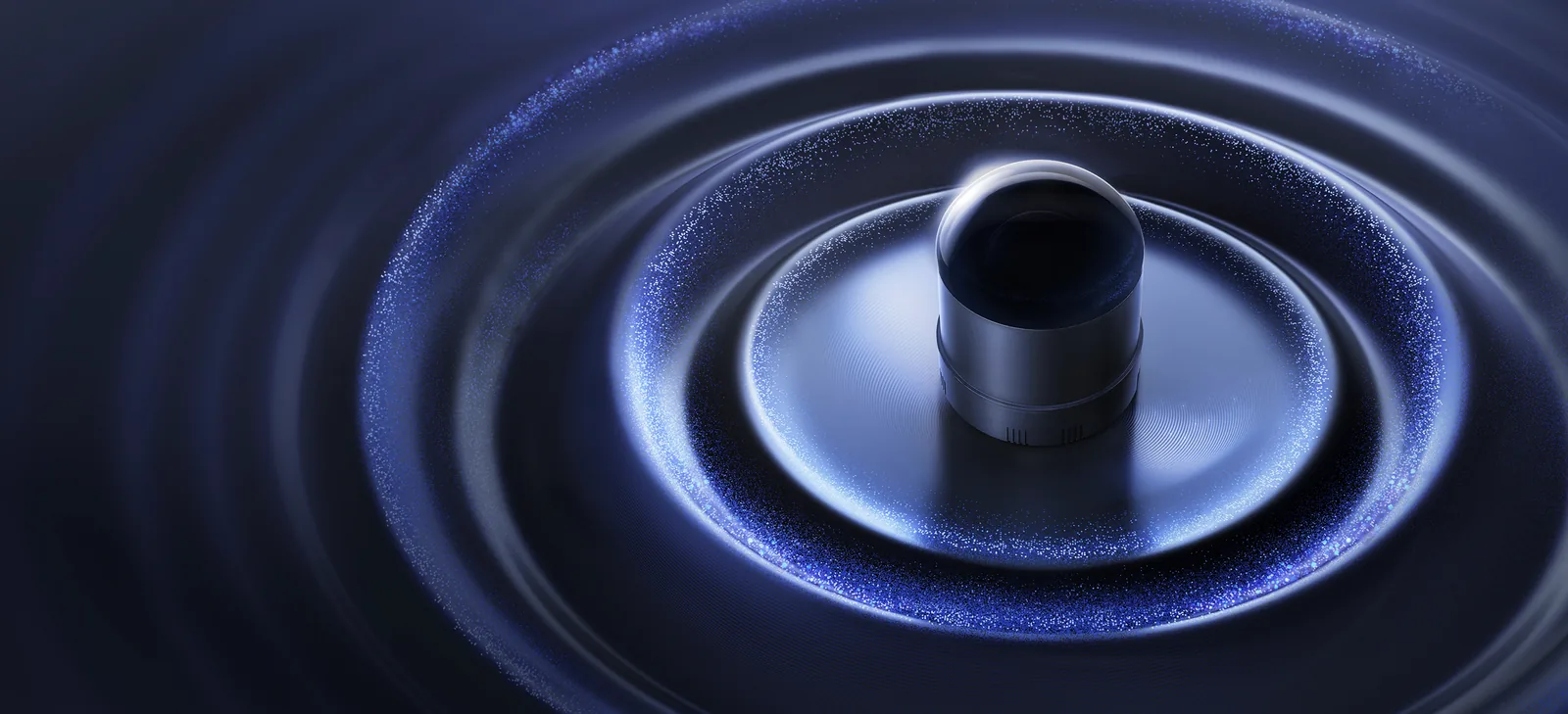

Hyper-hemispherical 128-channel mini lidar giving 360 by 189 degree coverage with almost no blind zone, 40 m range at 10 percent reflectivity and 1.15 million points per second. Weighs 250 g with a built-in IMU, around 70 percent smaller than comparable units.
| Type | Hyper-hemispherical mini 3D lidar |
| Channels | 128 |
| Range | 40 m @10% reflectivity (60 m max) |
| FoV (H/V) | 360 x 189 deg |
| Angular Resolution | 0.4 deg (H) x 0.74 deg (V) |
| Point Rate | 1,150,000 pts/s (single return) |
| Frame Rate | 10/20 Hz |
| Weight | 250 g |
| Dimensions | D62.5 x H73 mm |
| IMU | Built-in |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Hesai develops automotive and robotics LiDAR. The Shanghai operating company, Hesai Technology Co., Ltd., is separate from the listed holding company Hesai Group (Nasdaq HSAI; HKEX 2525). Select sensors by exact model, calibration files and integration requirements.
Manufacturer and distributor references for model selection and technical review.
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.
Discuss this configurationConsidering Hesai JT128 Hyper-Hemispherical Mini 3D LiDAR? Share the quantity, configuration and destination so we can check fit, availability and quote requirements.
Request a quote— The Sourcebotics sourcing desk
