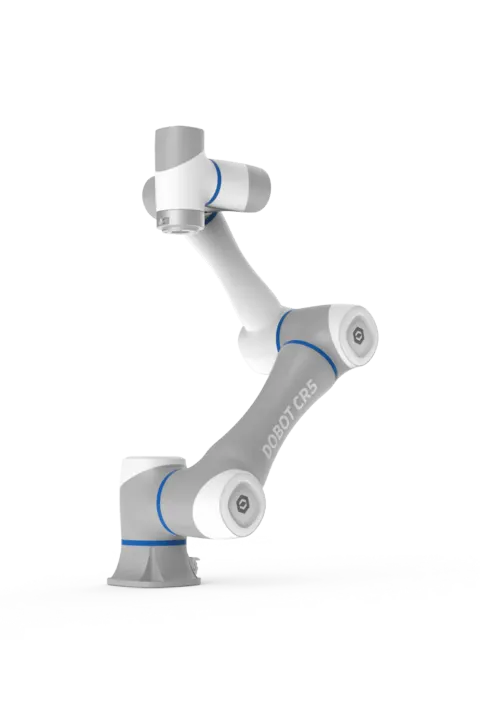

Dobot CR5 collaborative robot, original series

Dobot CR5 (original series)

Six-axis CR-series collaborative arm with a 5 kg maximum load and 900 mm reach in the original hardware manual. For an existing CR5 cell, match the controller and hardware revision before ordering; CRA and CR5A are separate models.

Price on requestRequest a configuration-specific quotation covering the product, required accessories, support, freight and taxes.

Maximum load5 kg

Reach900 mm

Axes6 (J1–J6)

Request a quote for this model Ask a question on WhatsApp

Product documentation Configuration & quotation Compare research arm options →

Technical specifications

Product documentation

ORIGINAL CR5 HARDWARE REFERENCE

Maximum load	5 kgReference ↗
Reach	900 mmReference ↗
Axes	6 (J1–J6)Reference ↗
Arm weight	25 kgReference ↗
Maximum end-effector speed	3 m/sReference ↗
Robot body voltage	48 V DCReference ↗
Tool communication	RS-485Reference ↗

REVISION-DEPENDENT SPECIFICATION

Published repeatability references

±0.03 mm in hardware guide V2 (19 November 2020); ±0.02 mm in current CR3/CR5 FAQ. Confirm the value applicable to the supplied revision.Reference ↗

Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.

Supplier

SHENZHEN DOBOT CORP LTD 深圳市越疆科技股份有限公司

Shenzhen · est. 2015 · 1,065 Group employees (30 Jun 2026)

DOBOT develops collaborative, desktop and education robot arms, alongside humanoid and research platforms. The manufacturer is SHENZHEN DOBOT CORP LTD, listed in Hong Kong under code 2432. Specify the exact robot family, controller, tooling and application software when comparing configurations.

View profile

Downloads

Manufacturer product reference

CR5 (original series; 2020 hardware reference)

Official technical manual

CR5 (original series; 2020 hardware reference)

Product documentation

Manufacturer and distributor references for model selection and technical review. Latest reference check: September 7, 2026.

Configuration & quotation

Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.

Price bandPrice on request

Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.

Discuss this configuration

FAQ

Which configuration should be quoted?

Provide the CR5 nameplate, controller version and required tool or application so the correct legacy documents and orderable configuration can be matched.

What should be agreed before ordering?

Request the matching load/reach diagram, electrical manual and acceptance specification, including the applicable repeatability figure. Evaluate a CRA or CR5A quotation as a separate model.
