Inspire Robots LA10 Micro Servo Linear Actuator

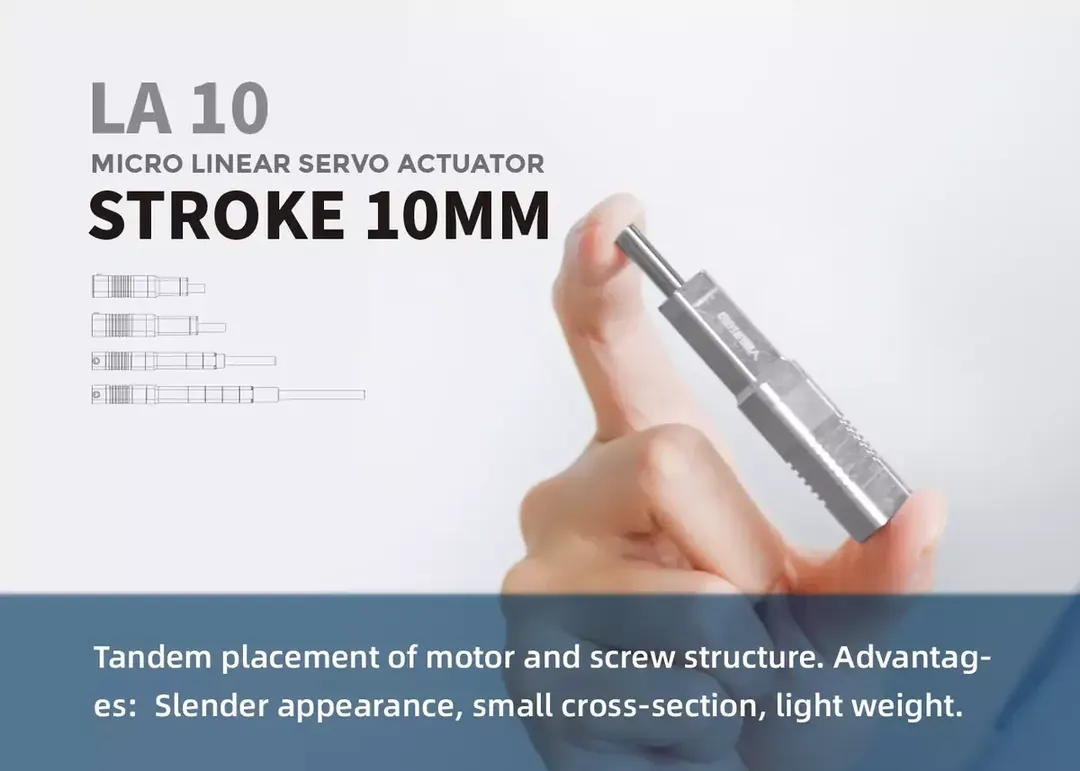

Slim micro servo electric cylinder with integrated driver, delivering up to 56-100 N thrust over 10 mm stroke at 8-70 mm/s. Its single-axis motor and screw layout keeps cross-section minimal for dexterous hands, medical devices and compact automation.
Price on request
TypeMicro servo electric cylinder (integrated driver)
Stroke10 mm
Peak Thrust56-100 N
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Type | Micro servo electric cylinder (integrated driver) |
| Stroke | 10 mm |
| Peak Thrust | 56-100 N |
| Speed | 8-70 mm/s |
| Voltage | DC 8 V +/-10% |
| Communication | LVTTL / PWM |
| Repeatability | +/-0.02 mm |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Supplier
Beijing Inspire Robots Technology Co., Ltd. 北京因时机器人科技有限公司
Beijing · est. 2016 · 100–500 employees
Inspire Robots is a pioneer in micro servo motion control, offering anthropomorphic five-finger dexterous hands with integrated force sensing, miniature servo electric cylinders from 10 to 50 mm stroke, and compact electric grippers. Products ship globally to humanoid robot, prosthetics and laboratory automation customers.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Lead time15-30 days
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
