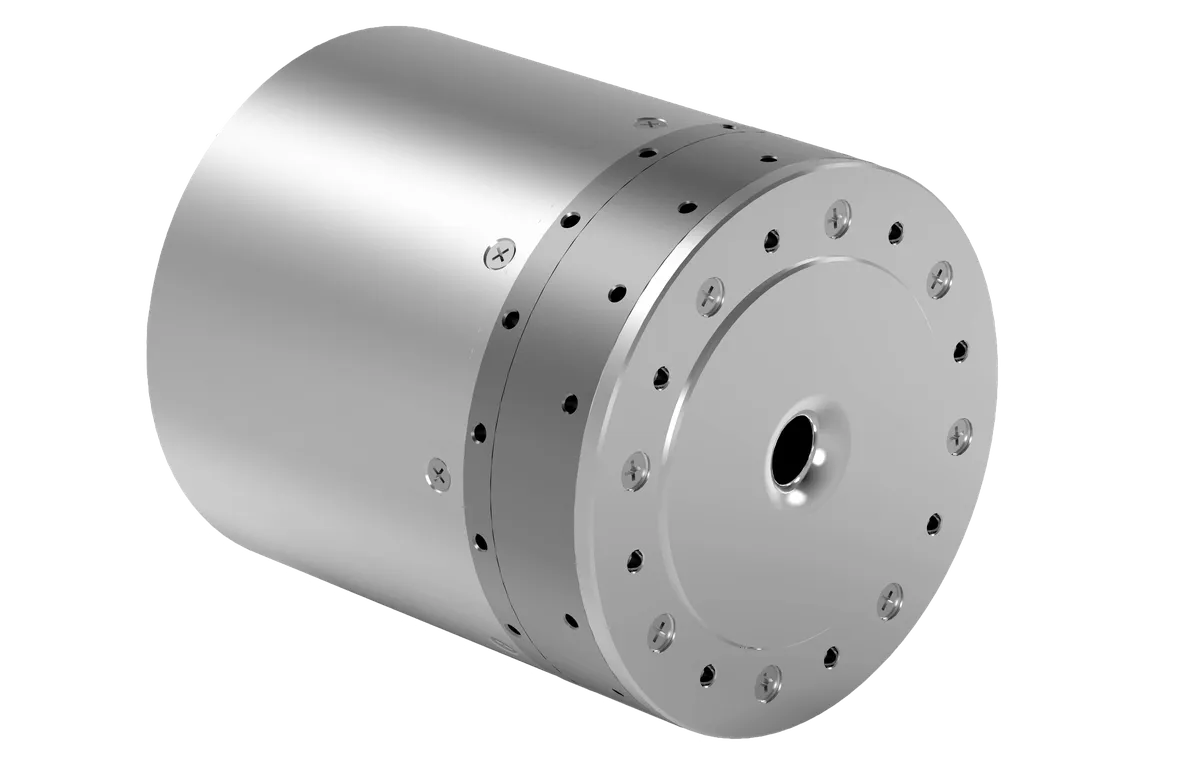

RealMan WHJ120-S-D88-100-E Integrated Harmonic Joint Module
Fully integrated harmonic joint module rated 120 N.m in an 88 mm diameter, 2300 g package. Servo driver, frameless torque motor, brake, dual encoders and in-house harmonic reducer are combined for high torque density and CANFD plug-and-play control.
Price on request
Rated Torque120 N.m
Rated Speed30 rpm
Reduction Ratio100:1
Technical specifications
Product documentationMANUFACTURER-REPORTED SPECIFICATIONS
| Rated Torque | 120 N.m |
| Rated Speed | 30 rpm |
| Reduction Ratio | 100:1 |
| Weight | 2300 g |

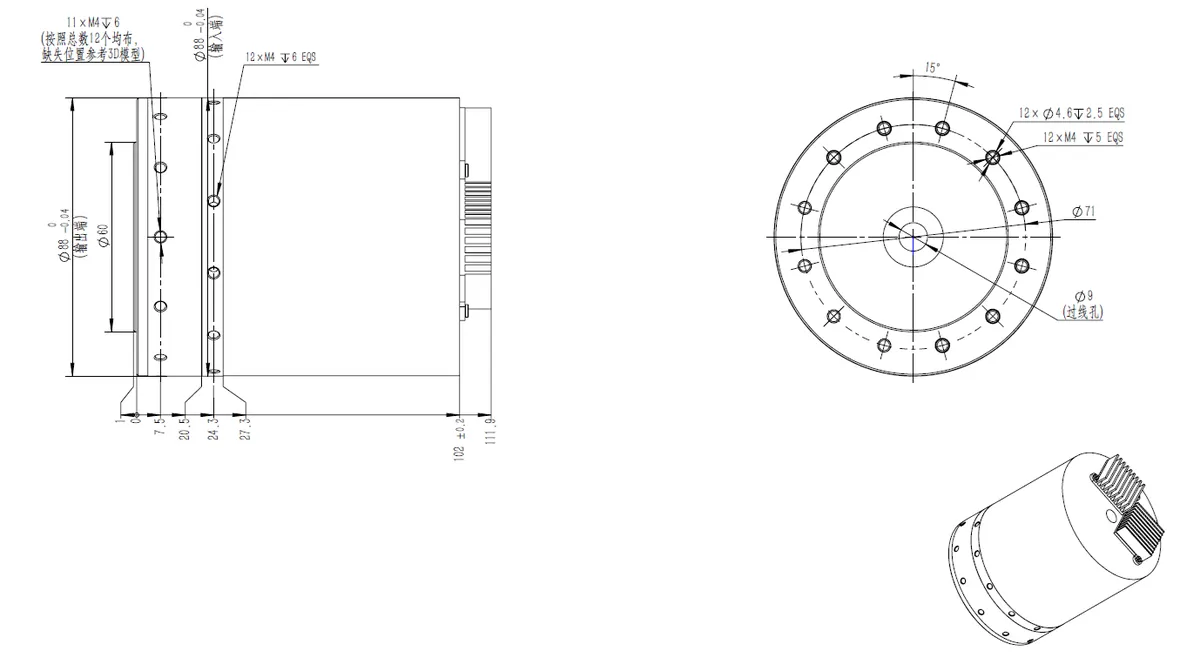

| Outer Diameter | 88 mm |
| Voltage | 48 V |
| Encoder Type | 16-bit incremental + 18-bit absolute |
| Communication | CANFD |
| Rated Power | 857 W |
| Brake | Pin-lock brake |
| Repeatability | +/-15 arcsec |
| Operating Temp | 0-50 C |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Supplier
RealMan Intelligent Technology (Beijing) Co., Ltd. 睿尔曼智能科技（北京）有限公司
Beijing · est. 2018 · 100–500 employees
RealMan specialises in ultra-lightweight modular robot arms weighing under 8 kg, powered from 24 V DC and shipped with open Python, C++ and ROS interfaces. RM65, RM75, ECO65 and GEN72 arms give 5 kg payload with optional built-in six-axis force sensing, making them a default choice for mobile manipulators and embodied AI research.
Product documentation
Manufacturer and distributor references for model selection and technical review.
Configuration & quotation
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Price range (USD)Price on request
MOQ1
Lead time20-40 days
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
