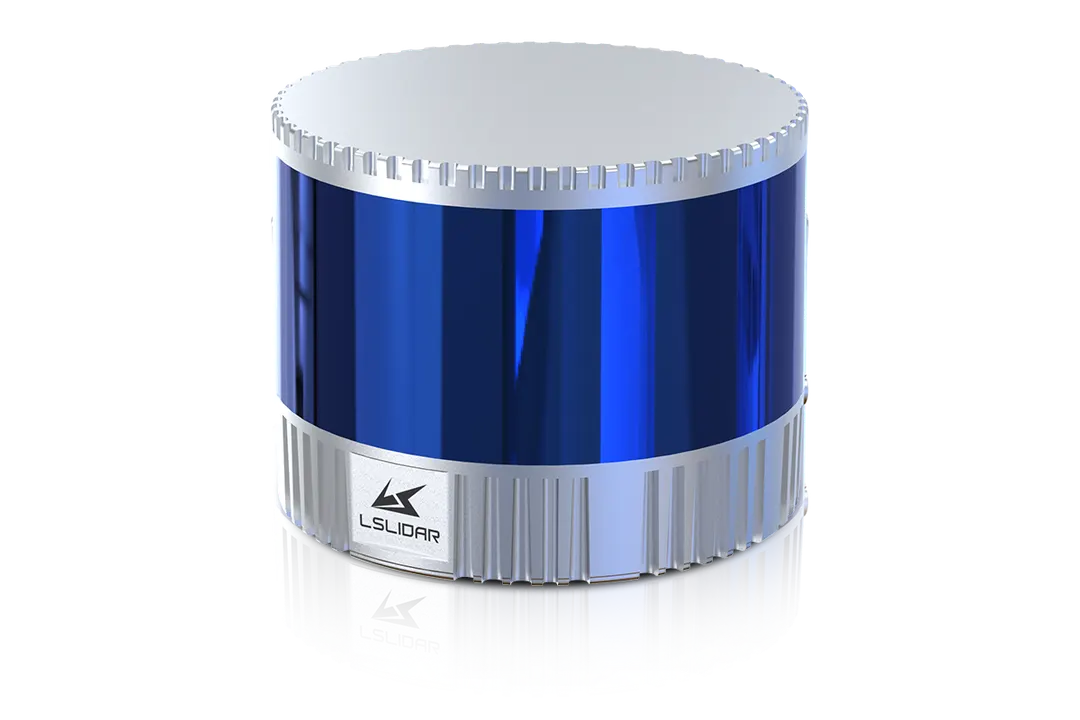

16-channel mechanical LiDAR reference for an earlier C32/16 datasheet. It specifies 360° horizontal coverage and 320,000 single-return points/s; newer C16 documents differ in dimensions, supply range and vertical angles. Match the supplied revision before using these values.
Sourcebotics selection notes, based on the published documentation.
| Channels | 16Reference ↗ |
| Range | 150 m maximum; datasheet does not specify target reflectivityReference ↗ |
| Field of view | 360° × 30° (−15° to +15°)Reference ↗ |
| Point rate | 320,000 single-return / 640,000 dual-return points/sReference ↗ |
| Frame rate | 5 / 10 / 20 Hz listed; earlier datasheet marks the rate entry optional. Confirm the supplied configuration.Reference ↗ |
| Accuracy | ±3 cmReference ↗ |
| Vertical angular resolution | 2°Reference ↗ |
| Weight | 1,000 gReference ↗ |
| Dimensions | Ø102 × 81 mmReference ↗ |
| Interface | Ethernet; PPS and GPS timingReference ↗ |
| Operating voltage | 9–36 V DCReference ↗ |
| Ingress protection | IP67, manufacturer ratingReference ↗ |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
LSLIDAR is the brand used by Leishen Intelligent System Co., Ltd. (深圳市镭神智能系统有限公司), founded in 2015. Its catalog covers mechanical, blind-spot, long-range and 2D LiDAR. Select the exact model and revision; a family name does not establish scan architecture or functional-safety certification.
Manufacturer and distributor references for model selection and technical review. Latest reference check: September 15, 2026.
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination. Use our procurement checklist to prepare the requirements, or download the worksheet.
Discuss this configurationThe generic C16 name covers differing documentation and hardware generations. These catalog references do not establish separately orderable variants or the C16-151B suffix. Match the full nameplate/order code, hardware, firmware and drawing before quoting. The CN-V2.2-24.10.23 standard C16 table gives 1040 g, Ø102 × 77.9 mm, −16° to +14° and 12–32 V DC. The earlier C32/16 PDF gives 1000 g, Ø102 × 81 mm, −15° to +15° and 9–36 V DC. The English introduction sheet gives 1050 g; the current webpage retains 9–36 V. Confirm the supplied drawing and electrical limits instead of mixing these references.
The CN-V2.2-24.10.23 brochure distinguishes ±3 cm ranging accuracy from ±1 cm precision (1σ). Current webpages label ±1 cm as accuracy without the same definition. Use a written acceptance definition for the quoted revision; do not interpret statistical precision as a guaranteed absolute error.
The manufacturer ROS 2 driver README LSLIDAR_CX_V4.2.4_240410_ROS2 explicitly lists C16 3.0 and 4.0 hardware families and named Ubuntu/ROS versions. Match the packet protocol, firmware and calibration to the unit; the driver was not run in this review. A configurable 200 m software filter is not a sensor range specification.
Standard C16 and the separately documented intrinsically safe/flameproof C16 family are not interchangeable. Do not transfer explosion-protection markings from the adjacent brochure page or C16E material to this standard unit; obtain the exact certificate and configuration if required.
Specify the full order code, hardware and firmware revisions, mounting drawing, power supply, connectors and return mode. Confirm availability, quantity, seller, shipment destination and warranty in the actual quotation.
