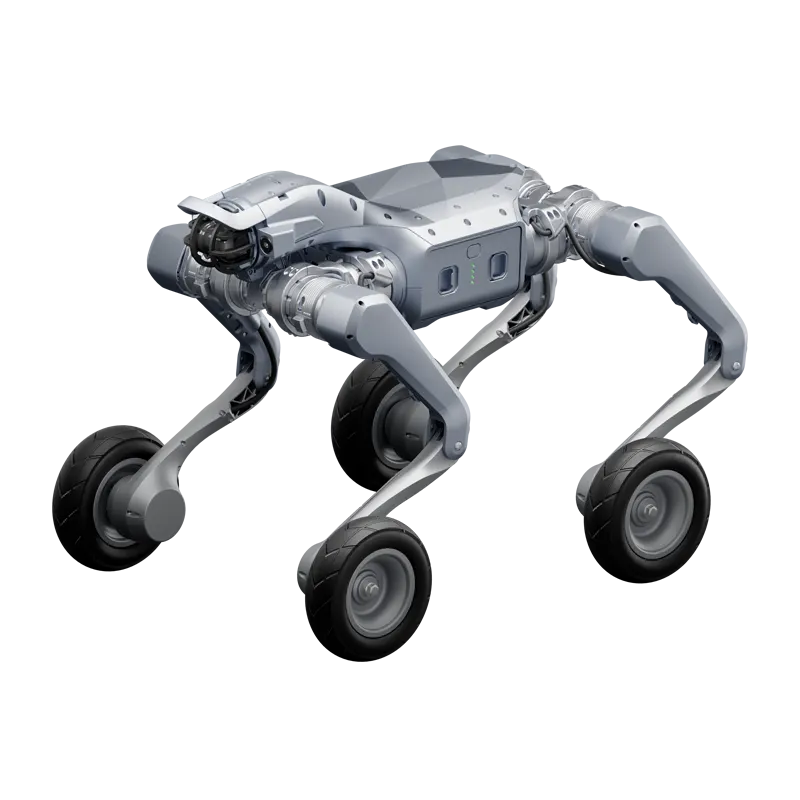

Compact wheeled-legged platform for mobile sensing, inspection and robotics research. The manufacturer offers X and EDU configurations with different sensing and development options; specify the wheel-leg operation and integration package required for the project.
| Configurations | As2-W X and As2-W EDUReference ↗ |
| Weight with battery | Approximately 25 kgReference ↗ |
| Motorized joints | 16Reference ↗ |
| Standing dimensions | 721 × 493 × 521 mmReference ↗ |
| Continuous walking payload | Approximately 16 kg; distinct from the static load ratingReference ↗ |
| Battery | 648 Wh (15,000 mAh), manufacturer-listed packReference ↗ |
Reference specifications for the listed model. Options, test conditions and integration requirements should be confirmed for your selected configuration.
Unitree develops quadruped and humanoid robots, manipulators and core components including actuators and LiDAR. Its public resources support research and application development across these product families. The company listed on the Shanghai Stock Exchange STAR Market in August 2026 under code 688836.
Manufacturer and distributor references for model selection and technical review. Latest reference check: September 8, 2026.
Specify the exact model or variant, required interfaces and accessories, quantity and delivery destination. Use the quotation to confirm the supplied configuration, current availability and commercial terms.
Ask for the current datasheet, delivery schedule, warranty scope and any documentation required for your destination.
Discuss this configurationUse the approximately 16 kg continuous walking payload stated by Unitree when scoping a moving payload. The much larger static load figure describes a different condition and should not be used for route or endurance planning.
Specify X or EDU, LiDAR and compute options, SDK access, sensor power and data interfaces, and the destination-specific software functions. Request a test on the intended stairs, slopes and surfaces with the real payload installed.
Considering Unitree As2-W Wheeled-Legged Robot? Share the quantity, configuration and destination so we can check fit, availability and quote requirements.
